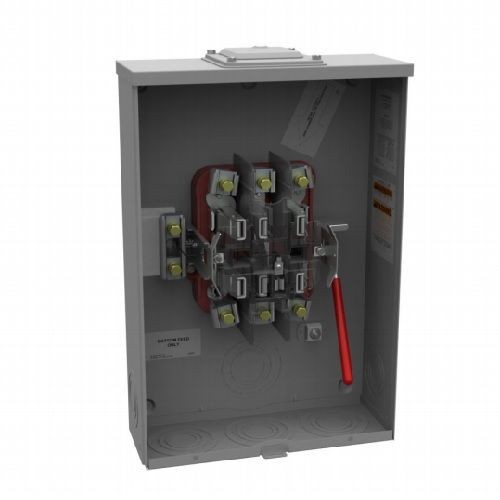

Milbank® U4701-RXL Ringless Meter Socket, 600 VAC, 200 A, 3 ph Phase, NEMA 3R Enclosure

Selected U4701-RXLMilbank® U4701-RXL Ringless Meter Socket, 600 VAC, 200 A, 3 ph Phase, NEMA 3R Enclosure
U4701-RXLMilbank® U4701-RXL Ringless Meter Socket, 600 VAC, 200 A, 3 ph Phase, NEMA 3R Enclosure

Documents

Short Description

Milbank® meter sockets have set the standard for quality since 1927. With a 99.97% quality performance, thousands of active products to meet your utility's requirements and tens of millions of sockets installed across the globe, our products help keep energy at work and with 22 stocking locations across the US and our OneSERT program to help serve your needs in emergency situations our meter sockets are ready to go, wherever the job may be.

Features

  • Lay-in line side and lay-in load side terminal
  • Large hub opening adapted to small closing plate
  • G90 galvanized steel with powder coat finish enclosure

Specification

Frequency Rating
60
Mounting Type
Surface
Number of Jaws
7
Minimum Order Qty
1
Order Interval
1
Amperage Rating
200 A
Catalog ID
MLBU4701-RXL
Dimensions
19 in H x 13 in W x 4-13/16 in D
Enclosure Type
NEMA 3R
Feed Type
Overhead/Underground
Phase
3
Terminal Type
Line/Load
Type
Ringless
Voltage Rating
600 VAC
Standard & Approvals
UL Listed
