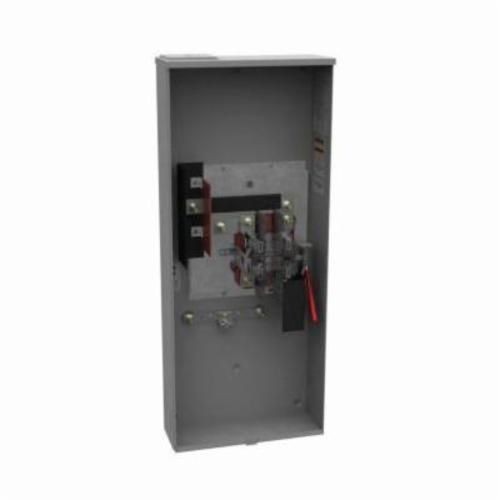

Milbank® U4905-X Ringless Meter Socket, 600 VAC, 320 A, 1 Phase, NEMA 3R Enclosure

Selected U4905-XMilbank® U4905-X Ringless Meter Socket, 600 VAC, 320 A, 1 Phase, NEMA 3R Enclosure
U4905-XMilbank® U4905-X Ringless Meter Socket, 600 VAC, 320 A, 1 Phase, NEMA 3R Enclosure

Documents

Short Description

Milbank's single position sockets are capable of serving a wide variety of needs, from a single-family house to a large industrial factory. With hundreds of configurations available, including many sizes, knockout configurations terminal configurations bypass options, hubs, locks and connectors, Milbank® has the socket you need to keep energy at work.

Features

  • 3/8 in stud line side and 3/8 in stud load side terminal
  • Large closing plate hub
  • G90 galvanized steel with powder coat finish enclosure

Specification

Frequency Rating
60
Mounting Type
Surface
Minimum Order Qty
1
Order Interval
1
Amperage Rating
320 A
Catalog ID
MLBU4905-X
Dimensions
38-3/4 in H x 16 in W x 5-3/4 in D
Enclosure Type
NEMA 3R
Feed Type
Overhead/Underground
Phase
1
Terminal Type
Line/Load
Type
Ringless
Voltage Rating
600 VAC
Standard & Approvals
UL Listed
