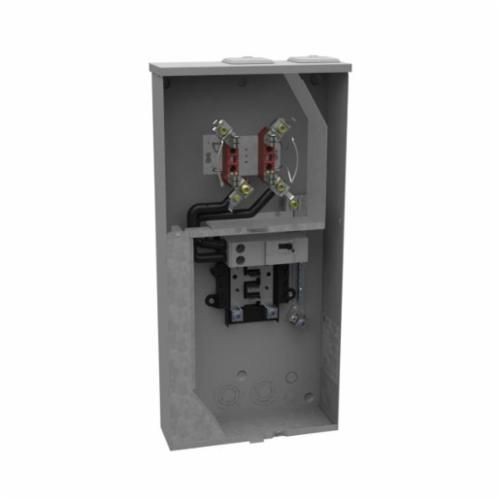

Milbank® U5168-XL-200-KK-AMS Ringless Meter Socket, 240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Milbank® U5168-XL-200-KK-AMS Ringless Meter Socket, 240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
SKU: MLBU5168-XL-200-KK-AMS
Manufacturer Part Number: U5168-XL-200-KK-AMS
UPC: 784572475366
Documents
Features
- 1 number of cut-out
- Lay in line side and single mechanical load side terminal
- Small closing plate hub
- G90 galvanized steel with powder coat finish enclosure
- Horn bypass provision
- 200 A main breaker cut-out
- 6 AWG - 350 kcmil line/load aluminum/copper
- Lay in Line/Single mechanical Load
- 200 A main breaker cut-out size
- Meter socket with main and load center
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Hub Size | Small |
| Mounting Type | Surface |
| Number of Jaws | 4 |
| Phase | 1 |
| Terminal Type | Lay-In |
| Type | Ringless |
| Voltage Rating | 240 VAC |
| Wire Size | 6 AWG to 350 kcmil |
| Standard & Approvals | RoHS Complaint, UL Listed |
| Amperage Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Feed Type | Overhead and Underground |
| Hub Type | Plate |
| Dimensions | 32-3/8 in H x 4-1/2 in W x 14-1/8 in D |
