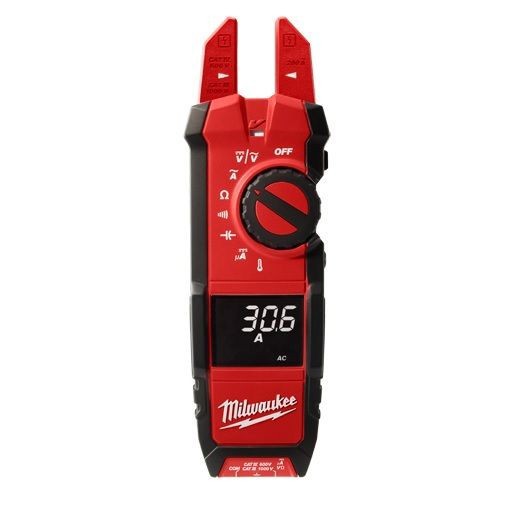

Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 VAC/VDC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display

Selected Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 VAC/VDC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 VAC/VDC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display

Short Description

The Milwaukee® Fork Meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 in fork opening, high 200 A current range and a high contrast white-on-black display.

Features

  • Measures up to 200 A, wide 0.63 in jaw opening
  • True-RMS for accurate measurement in all applications
  • 600 uA DC for flame rectification
  • Built-in voltage detector and LED work light
  • Thermocouple (dual banana) input for contact temperature measurement
  • Rugged overmolding increases durability and user grip

Specification

Frequency Rating
50/60 Hz
Jaw Capacity
5/8 in
Material
Rugged Over-Molding
Operating Temperature
14 to 122 deg F
Resistance
40 MOhm
Standard & Approvals
UL Listed
Dimensions
8 in L
AC Current Accuracy
+/- 2% + 5 Digit
AC Response
TRMS
Counts
4000
Display
White on Black LCD
Electrical Rating
1000 VAC/VDC
Application
Professional Residential, Commercial and Industrial
Type
Heavy Duty Digital
Power Source
AA Alkaline Battery
Safety Rating
CAT IV 600 V/CAT III 1000 V
Includes
(1) Fork Meter, (1) Test Lead Set, (1) Dual Banana Thermocouple, (2) AA Batteries and (1) Manual
