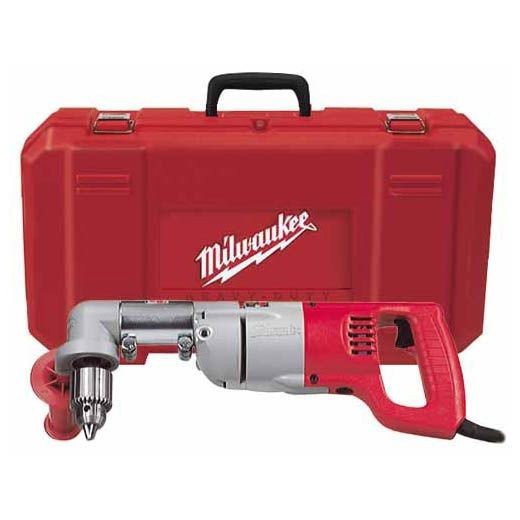

Milwaukee® 3002-1 Grounded Right Angle Drill Kit, 1/2 in Keyed Chuck, 120 VAC, 600 rpm Speed, 16-3/4 in OAL

Selected Milwaukee® 3002-1 Grounded Right Angle Drill Kit, 1/2 in Keyed Chuck, 120 VAC, 600 rpm Speed, 16-3/4 in OAL
Milwaukee® 3002-1 Grounded Right Angle Drill Kit, 1/2 in Keyed Chuck, 120 VAC, 600 rpm Speed, 16-3/4 in OAL

Documents

Short Description

The perfect tool for stud and joist drilling - and a host of other applications. With a powerful Milwaukee-built motor and right angle drive head, the 1/2 in D-Handle Right Angle Drill is flexible enough to handle a variety of applications. The powerful 7-amp motor delivers 0-600 rpm, so when combined with the two-speed head, you get 0-400 rpm on the low setting and 0-900 rpm on high. Helical-cut, heat treated gears deliver quiet performance and extended tool life with wood, metal, plastics and composites. The drill's head and handle swivel 360 deg and there's a side handle for a secure grip and comfortable, controlled operation. This 1/2 in D-handle Right Angle Drill comes in an impact-resistant carrying case, with a 9/16 in open-end wrench and 3/16 in socket wrench.

Features

  • Powerful 7 A motor delivers trigger speed control in two ranges such as 0 - 600/0 - 900 rpm plus reverse
  • Offers 1/2 in capacity in steel
  • Heavy duty 1/2 in keyed chuck with holder provides an industrial hold during drilling and fastening
  • Handles up to a 2-9/16 in selfeed bit
  • Head and handle swivel 360 deg providing unrestricted access
  • Drills head and handle swivel 360 deg and theres a side handle for a Secure-Grip™ and comfortable, controlled operation
  • It has quadruple gear train
  • 8 ft fixed cord

Specification

Handle Style
D-Handle
Speed
600 rpm
Torque Rating
763 in-lb
Type
Grounded
Voltage Rating
120 VAC
Application
Stud and Joist Drilling
Standard & Approvals
CSA Certified, UL Listed
Dimensions
16-3/4 in L
Chuck Size
1/2 in
Chuck Type
Keyed
Color
Red
Control Type
Trigger Switch, Spindle Lock
Includes
RAD Assembly, Side Handle and Carrying Case
Amperage Rating
7 A
