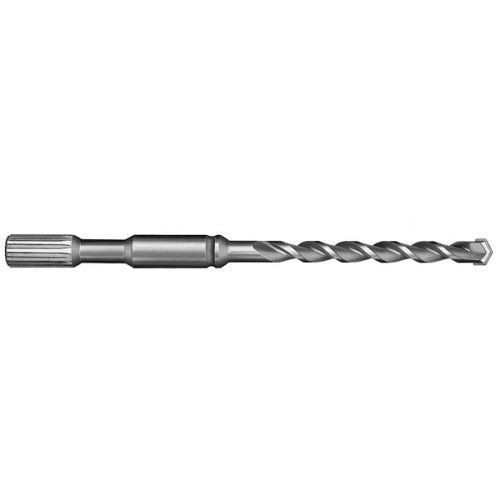

Milwaukee® 48-20-4100 2-Cutter Rotary Hammer Drill Bit, 1 in Drill Bit, 3/4 in Spline Shank, 10 in D Cutting, Carbide Cutting Edge, 16 in OAL
Milwaukee® 48-20-4100 2-Cutter Rotary Hammer Drill Bit, 1 in Drill Bit, 3/4 in Spline Shank, 10 in D Cutting, Carbide Cutting Edge, 16 in OAL
SKU: MIL48-20-4100
Manufacturer Part Number: 48-20-4100
UPC: 045242102907
Documents
Short Description
Features
- Brazing formula optimizes drilling for up to 20% longer life
- Unique flute geometry provides efficient dust removal
- Centering point and 4-cutter design provide accurate and precise round holes
- Two cutter spline bits have a series of 13 spline that slide into an equal but opposite set of spline in the drive system of the spline drive hammer
- This positive engagement of spline to spline allows maximum transmission of energy from the hammer to the bit
- Superior quality carbide nibs are vacuum brazed to a heat treated steel body resulting in two cutting edges which pulverize the concrete as the bit turns and pounds the work surface
- 11 in useable length
Specification
| Material | Carbide |
|---|---|
| Overall Length | 16 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Applicable Materials | Masonry |
| Catalog ID | MIL48-20-4100 |
| Color | Silver |
| Cutting Depth | 10 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 1 in |
| Finish | Bright |
| Flute Length | 10 in |
| Point Type | Centering |
| Shank Size | 3/4 in |
| Shank Type | Spline |
| Type | 2-Cutter |
