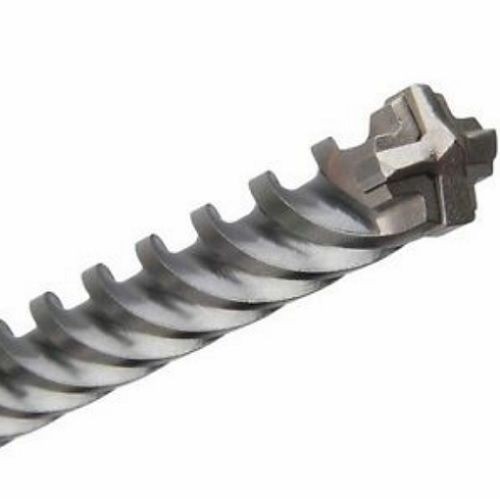

Milwaukee® MX4™ 48-20-7313 4-Cutter Rotary Hammer Drill Bit, 3/16 in Drill Bit, 25/64 in, 8 in D Cutting, Carbide Cutting Edge, 10 in OAL

Selected Milwaukee® MX4™ 48-20-7313 4-Cutter Rotary Hammer Drill Bit, 3/16 in Drill Bit, 25/64 in, 8 in D Cutting, Carbide Cutting Edge, 10 in OAL
Milwaukee® MX4™ 48-20-7313 4-Cutter Rotary Hammer Drill Bit, 3/16 in Drill Bit, 25/64 in, 8 in D Cutting, Carbide Cutting Edge, 10 in OAL

Short Description

Milwaukee® MX4™ 4-Cutter SDS-Plus Rotary Hammer Drill Bits provide up to 4x Life in Rebar and up to 20% more holes per charge in cordless rotary hammers. The enhanced rebar guards and 4-Cutter 90 deg head design provide increased life and durability in hard aggregate and rebar. Breaker Point pulverize the material more effectively resulting in faster drilling speeds. The variable flute allows for maximum debris extraction leading to up 20% more holes per charge in cordless rotary hammers while making it a very durable bit in corded and cordless rotary hammers. Additionally, MX4™ features a centering tip for exact spot drilling, wear mark indicator indicating when the bit no longer meets ANSI diameter requirements and a reinforced flute for durability and minimized vibration. The increased life and efficiency of the MX4™ 4-Cutter drill bit line provides the ideal solution in general concrete and reinforced concrete for cordless and corded rotary hammer users.

Features

  • Enhanced Rebar Guards provide increased durability
  • Breaker Points lead to faster drilling speeds
  • Variable flute for up to 20% more holes per charge in cordless rotary hammers
  • Wear mark indicators to show end of life and when bit no longer meets the ansi requirement
  • Centering tip for exact spot drilling
  • Reinforced flutes for minimized vibration and maximum durability

Specification

Number of Flutes
4
Point Type
Centering
Shank Size
25/64
Shank Type
SDS Plus®
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, ANSI Specified
Color
Silver
Cutting Edge Material
Carbide
Flute Type
Spiral
Application
For anchoring applications
Type
4-Cutter Solid Tip
Series
MX4™
Overall Length
10
Material
Solid Carbide
Flute Length
8
Cutting Depth
8
Applicable Materials
Concrete, Masonry and Reinforced Concrete
