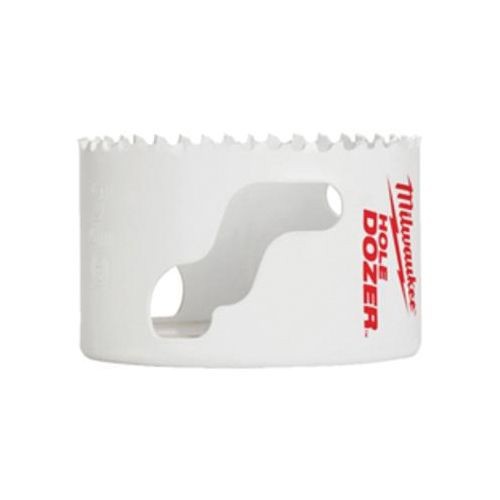

Milwaukee® HOLE DOZER™ 49-56-9645 Hole Saw, 4 in Dia, 1-5/8 in D Cutting, Bi-Metal/8% Cobalt Cutting Edge

Selected 49-56-9645Milwaukee® HOLE DOZER™ 49-56-9645 Hole Saw, 4 in Dia, 1-5/8 in D Cutting, Bi-Metal/8% Cobalt Cutting Edge
49-56-9645Milwaukee® HOLE DOZER™ 49-56-9645 Hole Saw, 4 in Dia, 1-5/8 in D Cutting, Bi-Metal/8% Cobalt Cutting Edge

Short Description

Made in the USA, the Milwaukee® Hole Dozer™ Hole Saw features Rip Guard™, the strongest tooth form in the industry, backed by the Rip Guard™ limited lifetime tooth break warranty. Each tooth is built with more steel behind the cutting edge for added strength. The Rip Guard™ warranty on tooth breaks is a first for the hole saw industry. The added tooth strength along with 8% cobalt give added life to the teeth, allowing for increased productivity on the jobsite, as well as continued hole quality. The Hole Dozer™ includes Plug Jack™, an all access slot design that allows for full access during plug removal. The Plug Jack™ gives access lower into the cup for thick material and higher towards the teeth for thin material. With multiple positions to apply leverage and better plug access, Plug Jack™ increases productivity and eliminates wasted downtime between holes. For fast, tool-free change-outs, use Milwaukee® universal Quick-Change Arbors.

Features

  • Rip Guard™ the strongest tooth form in the industry with more steel behind the cutting edge for added durability
  • Plug Jack™, an all access slot design for fast plug removal
  • Bi-metal construction with 8% cobalt for increased wear resistance
  • Coated with a low friction, thermoset paint that provides faster cutting speed in wood and more holes cut per battery charge
  • Shrink wrap package type
  • 130 rpm aluminum, 55 rpm cast iron, 85 rpm mild steel, 40 rpm stainless steel

Specification

Shank Size
3/8 in
Shank Type
Hex
Applicable Materials
Aluminum, Cast Iron, Mild Steel, Sheet Metal and Stainless Steel
Body Material
Carbon Steel
Chuck Size
1/2 in
Color
White
Cutting Depth
1-5/8 in
Cutting Edge Material
Bi-Metal/8% Cobalt
Cutting Edge Style
Toothed
Diameter
4 in
Drill Size
1/4 in Dia x 3-1/2 in L
Use Arbor
49-56-7210/49-56-7240/49-56-7250 and 49-56-9100
TPI or Pitch
3.5 TPI
Speed
130/55/85/40 rpm
