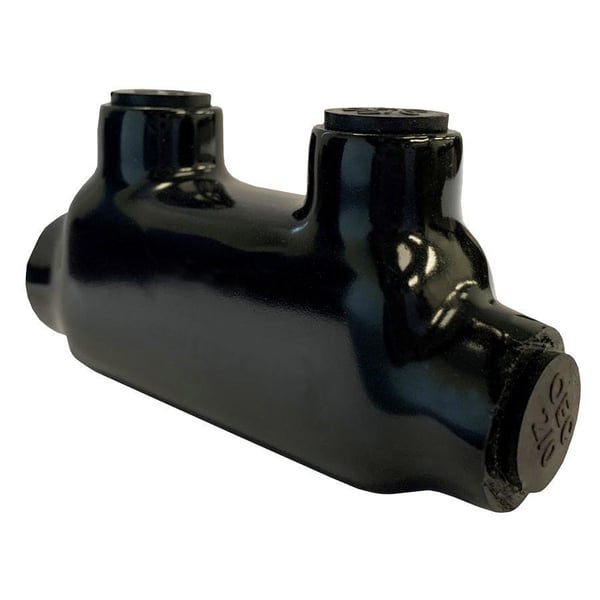

MORRIS 97020 In-Line Mechanical Insulated Connector, 6 to 2/0 AWG Aluminum/Copper Conductor, 6061-T6 Aluminum
MORRIS 97020 In-Line Mechanical Insulated Connector, 6 to 2/0 AWG Aluminum/Copper Conductor, 6061-T6 Aluminum
SKU: MRS97020
Manufacturer Part Number: 97020
UPC: 601986970204
Documents
Features
- Insulated Electrical Power Connector In-Line Splice - Black Insulated Splice for easy fast hassle free installations
- 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires
- Insulated Splice with rugged high-dielectric Rubber/Vinyl Coating
- Pre-Filled with Oxide Inhibitor
- Insulated Splice provides Easy Re-entry for changes, inspection or troubleshooting
Specification
| Dimensions | 3.55 in L x 0.96 in W x 2.05 in H |
|---|---|
| Voltage Rating | 600 VAC |
| Conductor Size | 6 to 2/0 AWG |
| Temperature Rating | -49 to 194 deg F |
| Material | 6061-T6 Aluminum |
| Type | In-Line |
| Specifications | 3/16 in Allen Hex, Clear PVC Insulation |
| Conductor Type | Aluminum/Copper |
