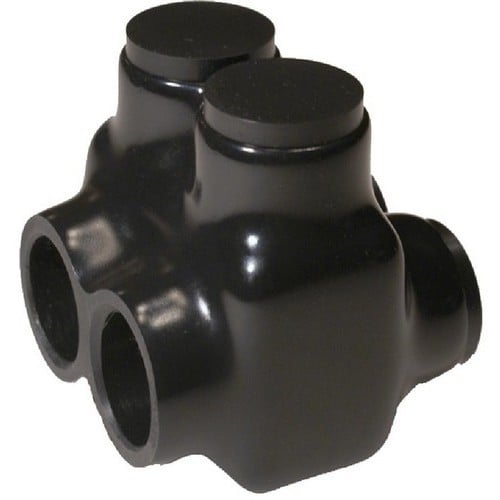

MORRIS 97118 2-Conductor Dual Entry Mechanical Insulated Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 6061-T6 Aluminum
MORRIS 97118 2-Conductor Dual Entry Mechanical Insulated Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 6061-T6 Aluminum
SKU: MRS97118
Manufacturer Part Number: 97118
UPC: 601986971188
Features
- Insulated connector has rugged high dielectric rubber/vinyl coating
- Pre-filled with oxide inhibitor
- Easy re-entry for changes, inspection or troubleshooting
- Plugs marked with connector max wire size for easy identification
- 1-wire per terminal
- Optional wire entry from either side
Specification
| Dimensions | 2.2 in L x 2.41 in W x 2.22 in H |
|---|---|
| Conductor Size | 6 AWG to 250 kcmil |
| Specifications | 5/16 in Allen Hex, Black PVC Insulation |
| Type | 2-Conductor Dual Entry |
| Temperature Rating | -49 to 194 deg F |
| Material | 6061-T6 Aluminum |
| Voltage Rating | 600 VAC |
| Conductor Type | Aluminum/Copper |
