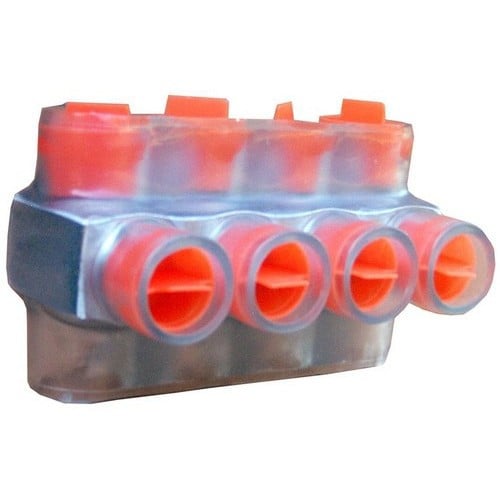

MORRIS 97416 Dual Entry Multi-Cable Mechanical Insulated Connector, 6 AWG to 350 kcmil Aluminum/Copper Conductor, 6061-T6 Aluminum
MORRIS 97416 Dual Entry Multi-Cable Mechanical Insulated Connector, 6 AWG to 350 kcmil Aluminum/Copper Conductor, 6061-T6 Aluminum
SKU: MRS97416
Manufacturer Part Number: 97416
UPC: 601986974165
Documents
Features
- Clear Multi-Cable Insulated Electrical Power Connectors Dual Side Entry - With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time
- Clear Insulation allows Visual Confirmation that conductor is properly inserted
- Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
- Easy Re-Entry for Changes, Inspection or Troubleshooting
Specification
| Voltage Rating | 600 V AC |
|---|---|
| Dimensions | 4.25 in L x 3.13 in W x 2.5 in H |
| Conductor Size | 6 AWG to 350 kcmil |
| Material | 6061-T6 Aluminum |
| Temperature Rating | -49 to 194 deg F |
| Conductor Type | Aluminum/Copper |
| Type | Dual Entry Multi-Cable |
| Specifications | 4-Port, 3/8 in Allen Hex, Clear PVC Insulation |
