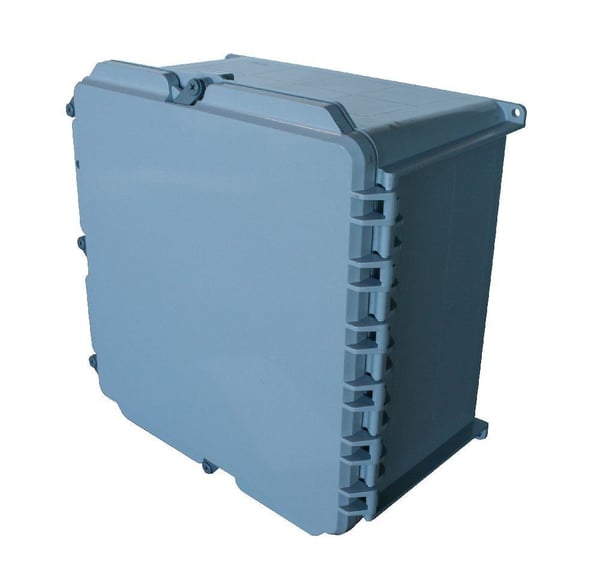

MULTI FITTINGS JBox™ 278406 Junction Box, 14 in H x 14 in W x 8 in D, Smooth Flat Cover, NEMA 3R/4X NEMA Rating, PVC

Selected 278406MULTI FITTINGS JBox™ 278406 Junction Box, 14 in H x 14 in W x 8 in D, Smooth Flat Cover, NEMA 3R/4X NEMA Rating, PVC
278406MULTI FITTINGS JBox™ 278406 Junction Box, 14 in H x 14 in W x 8 in D, Smooth Flat Cover, NEMA 3R/4X NEMA Rating, PVC

Documents

Short Description

The new Hinged Cover Kraloy® JBox™ opens more than 200 deg for complete and easy access to control devices and instruments and is designed to work with your existing PVC conduit runs. The hinged cover Kraloy® JBox™ is NEMA 3R and 4X rated, ideally suited for indoor and outdoor industrial, MRO and OEM applications and in wash-down environments. It is 100% non-metallic and includes all the features that users have come to appreciate in the Kraloy® JBox™.

Features

  • Removable cover opens over 200 deg for complete access to installed devices
  • Standoffs are molded-in to accept back panels as well as DIN rails
  • Features quarter-turn fasteners that are hand-close and tool-assist to open
  • Built-in gridlines create easy reference for drilling knockouts making conduit alignment a snap

Specification

Height
14 in
Material
PVC
Mounting Type
Pole
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, CSA 94.1/94.2, CSA C22.2 NO 85/40, cULus Listed, UL 50/50E
Depth
8 in
Application
Corrosive Environments, Waste-Water Treatment Facilities, Marine and Car Washes, Agricultural and Wash Down
Width
14 in
Temperature Rating
-40 to 50 deg C
NEMA Rating
NEMA 3R/4X
Lock
Tie-Wrap/Bolt/Padlock
Cover Type
Smooth Flat
Capacity
1535 cu-in
