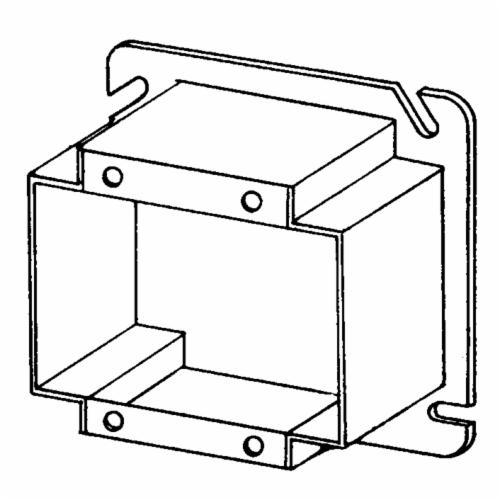

Appleton® ETP™ 857-150 1-Device Raised Square Box Cover, 4-11/16 in L x 4-11/16 in W x 1-1/2 in D, Steel

Selected 857-150Appleton® ETP™ 857-150 1-Device Raised Square Box Cover, 4-11/16 in L x 4-11/16 in W x 1-1/2 in D, Steel
857-150Appleton® ETP™ 857-150 1-Device Raised Square Box Cover, 4-11/16 in L x 4-11/16 in W x 1-1/2 in D, Steel

Documents

Short Description

The best electricians insist on the best products. Durable materials, consistent construction and easy installation all make a difference in the speed and final quality of any wiring job. That is why the best electricians choose Appleton Group products. Indoors or outdoors, wherever conduit or cable terminates at a switch/outlet box, junction box, lamp holder or fixture, our Appleton and O-Z/Gedney brands are a sign of professional quality.

Features

  • Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts
  • Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations
  • Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
  • Groundskeeper raised ground feature on boss inside box provides one or two NO.10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface
  • Other boxes provided with flat ground tapped hole, except plenum boxes
  • Plaster rings/mud rings
  • Commercial product

Specification

Length
4-11/16 in
Material
Steel
Series
ETP
Shape
Square
Type
Single Device
Width
4-11/16 in
Standard & Approvals
UL 514A, E2527, NEMA OS-1, RoHS Compliant
Depth
1-1/2 in
Finish
Electro Galvanized
Capacity
18.8 cu-in
