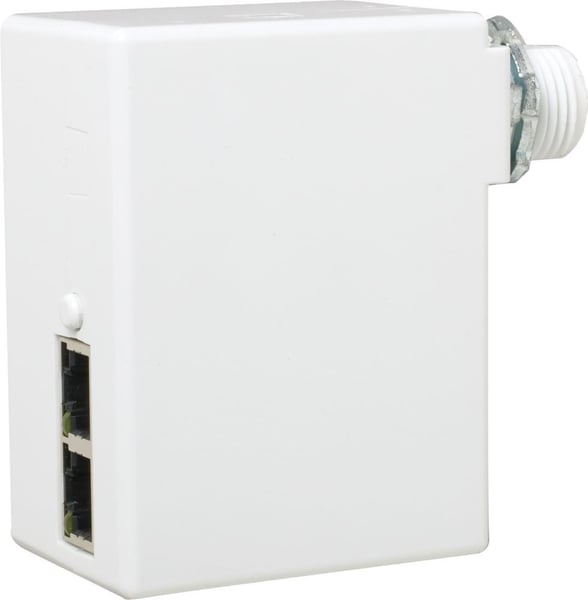

nLight® NPP16 D EFP nPP16 Standard Power/Relay Pack, 120/277 VAC, 40 mA

Selected NPP16 D EFPnLight® NPP16 D EFP nPP16 Standard Power/Relay Pack, 120/277 VAC, 40 mA
NPP16 D EFPnLight® NPP16 D EFP nPP16 Standard Power/Relay Pack, 120/277 VAC, 40 mA

Documents

Short Description

The nLight®nPP16 Series power pack is the workhorse of an nLight® system. Each unit has two important responsibilities: providing system power and switching lighting loads. To provide system power, the power pack transforms Class 1 line voltage (120/277 VAC or 347 VAC) to Class 2 15 VDC. For switching a lighting load, an internal 16 A latching relay is used. The power packs two RJ45 connectors make control wiring with standard CAT-5 cabling easy and clean. For simplifying installation, power packs have an elongated chase nipple that allows them to be attached either directly through a 1/2 in knockout into a junction box, or inside an adjacent box for meeting specific local code requirements in ceiling plenums.

Features

  • Communicates with nLight® network
  • Remotely configurable/upgradeable
  • Pushbutton programmable
  • Configurable relay logic
  • Provides system power
  • Self-contained relay switches line voltage load
  • Plenum rated
  • Green LED indicator
  • Extended chase nipple
  • External fault protection

Specification

Material
Plastic
Voltage Rating
120/277 VAC
Standard & Approvals
cULus Listed, DLC Standard, UL 2043, California Title 24 Compliant, ASHRAE 90.1, UL 916 E167435
Color
White
Amperage Rating
40 mA
Type
Standard
Series
nPP16
Application
Education, Government, Healthcare, Hospitality, Manufacturing, Offices, Banks, Religious, Retail, Sports and Recreation and Warehouses
Dimensions
4 in W x 1.83 in D x 2-1/2 in H
