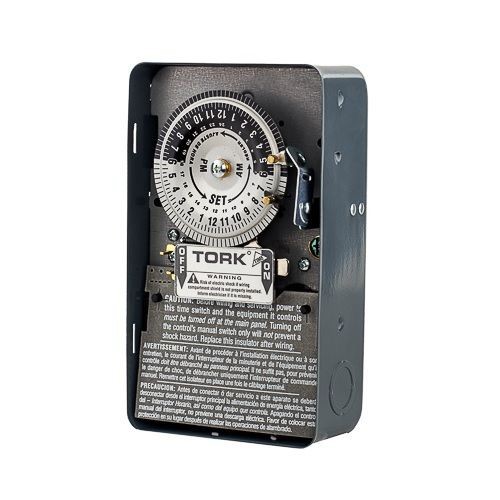

NSI Tork® 1103B 1100 Auto Off Interval Mechanical Time Switch, 24 hr Setting, 120 VAC, 2 hp, 5 hp, DPST Contact, 2 Poles
NSI Tork® 1103B 1100 Auto Off Interval Mechanical Time Switch, 24 hr Setting, 120 VAC, 2 hp, 5 hp, DPST Contact, 2 Poles
SKU: TOR1103B
Manufacturer Part Number: 1103B
UPC: 786261100665
Documents
Features
- 60 Hz frequency rating
- Minimum ON is setting 20 minimum with a minimum OFF setting of 75 minimum
- Dial accommodates up to 12 pairs of trippers
- 8 to 14 AWG terminal range wire
- 3 W maximum wattage power consumption
- Lockable hasp enclosure
- Metal indoor enclosure
Specification
| Mounting Type | Threaded |
|---|---|
| Number Of Poles | 2 |
| Operation Mode | On/Off |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 40 A |
| Catalog ID | TOR1103B |
| Contact Form | DPST |
| Dimensions | 4.687 in L x 2.937 in W x 7.937 in H |
| Enclosure Type | NEMA 1 |
| Series | 1100 |
| Temperature Rating | -40 to 165 deg F |
| Time Setting | 24 hr |
| Voltage Rating | 120 VAC |
| Application | Lighting, Pumps, Signs, Air Conditioning, Water Heaters and Fan Control |
| Standard & Approvals | UL Listed, CSA Certified |
| Horsepower | 2/5 hp |
