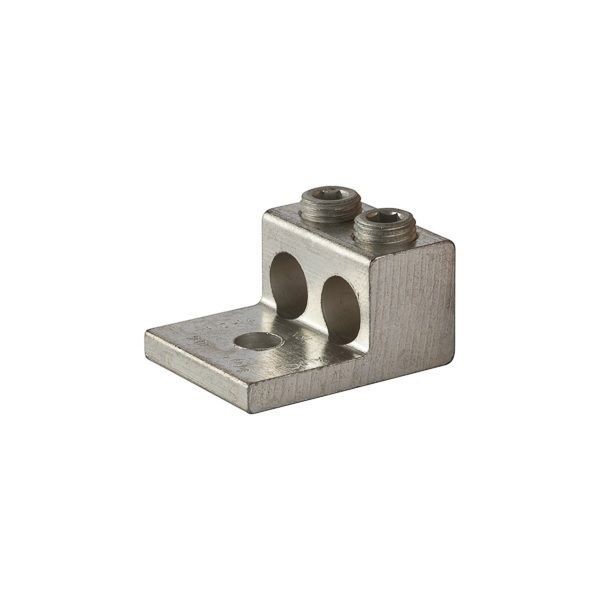

NSI 2-600T Dual Rated Lug, 2 AWG to 600 kcmil, 1/2 in Stud, 1 Bolt Holes, Aluminum
NSI 2-600T Dual Rated Lug, 2 AWG to 600 kcmil, 1/2 in Stud, 1 Bolt Holes, Aluminum
SKU: NSI2-600T
Manufacturer Part Number: 2-600T
UPC: 662381001245
Documents
Features
- Versatile and reusable set screw connectors made of 6061T-6 aluminum alloy
- Electro tin plated for low contact resistance
- 0.63 in hole center to tang end size
Specification
| Material | Aluminum |
|---|---|
| Number of Bolt Holes | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | NSI2-600T |
| Conductor Size | 600 mcm to 2 AWG |
| Dimensions | 3.18 in L x 2.41 in W x 1.51 in H |
| Finish | Electro-Tin Plated |
| Series | T-Series |
| Specifications | 2-Conductor, 3/8 Wrench, 550 in-lb Torque |
| Stud Size | 1/2 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 1.93 in W x 0.38 in THK |
| Voltage Rating | 600 VAC |
| Standard & Approvals | cULus Listed, UL 486A/B |
| Application | For Wire Termination |
