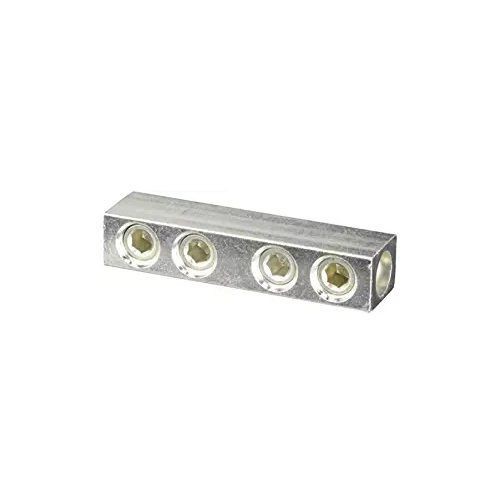

NSI 250SR Splicer Reducer, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Aluminum
NSI 250SR Splicer Reducer, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Aluminum
SKU: NSI250SR
Manufacturer Part Number: 250SR
UPC: 662381002334
Documents
Features
- For splicing two copper or aluminum wires of equal or different sizes
- Made of 6061T-6 aluminum alloy
- Electro tin plated for low contact resistance
- 2-ports
- 2-conductors
- 5/16 in wrench size
Specification
| Material | Aluminum |
|---|---|
| Series | SR |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Dimensions | 4.094 in L x 0.812 in W x 1 in H |
| Conductor Type | Copper/Aluminum |
| Finish | Electro-Tin Plated |
| Conductor Size | 6 AWG to 250 MCM |
| Standard & Approvals | cULus Listed, UL Listed |
| Application | For wire spicing |
