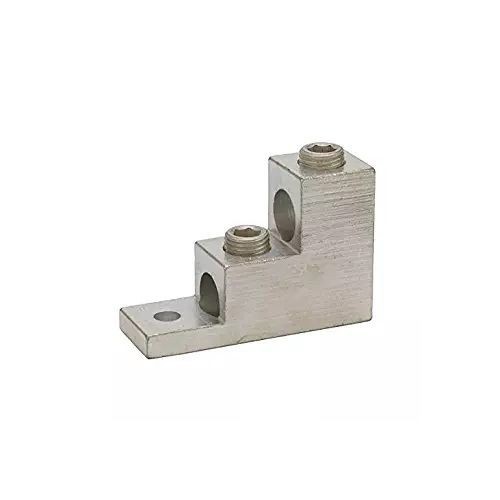

NSI 300T-2 T2 Stacked Step Panel Lug, 6 AWG to 300 kcmil Aluminum/Copper Conductor, 5/16 in Stud, 1 Bolt Holes, Aluminum
NSI 300T-2 T2 Stacked Step Panel Lug, 6 AWG to 300 kcmil Aluminum/Copper Conductor, 5/16 in Stud, 1 Bolt Holes, Aluminum
SKU: NSI300T-2
Manufacturer Part Number: 300T-2
UPC: 662381001801
Features
- Large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector
- Made of 6061T-6 aluminum alloy
- Tin plated for low contact resistance
- 0.47 in hole center to tang end size
Specification
| Material | Aluminum |
|---|---|
| Number of Bolt Holes | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | NSI300T-2 |
| Conductor Size | 300 mcm to 6 AWG |
| Conductor Type | Copper/Aluminum |
| Dimensions | 3 in L x 1 in W x 2 in H |
| Finish | Electro-Tin Plated |
| Series | T2-Series |
| Specifications | 2-Conductor, 0.33 in Hole Dia, 5/16 in Wrench, 330 in-lb Torque |
| Stud Size | 5/16 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 1 in W x 0.31 in THK |
| Type | Stacked |
| Voltage Rating | 600 VAC |
| Application | For use with copper or aluminum conductors |
| Standard & Approvals | UL E155027/486A/B |
