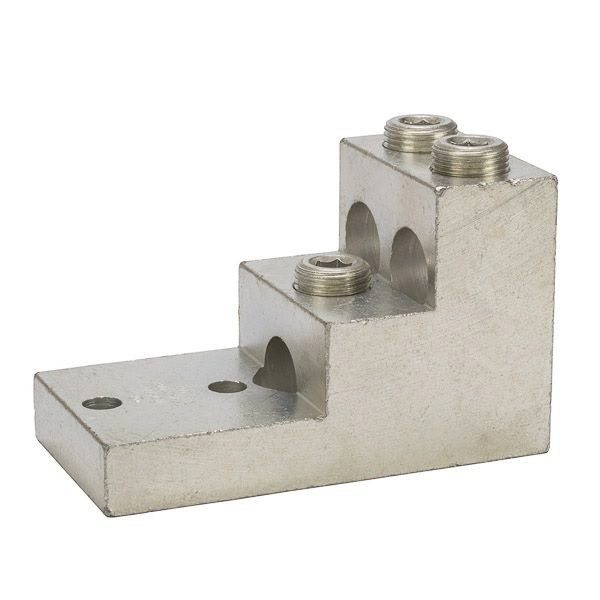

NSI 600T-3 T2 Stacked Step Panel Lug, 2 AWG to 600 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 2 Bolt Holes, Aluminum
NSI 600T-3 T2 Stacked Step Panel Lug, 2 AWG to 600 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 2 Bolt Holes, Aluminum
SKU: NSI600T-3
Manufacturer Part Number: 600T-3
UPC: 662381001832
Features
- Large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector
- Made of 6061T-6 aluminum alloy
- Tin plated for low contact resistance
- 0.38 in hole center to tang end size
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | NSI600T-3 |
| Conductor Size | 600 mcm to 2 AWG |
| Conductor Type | Copper/Aluminum |
| Dimensions | 4.91 in L x 2.5 in W x 3 in H |
| Finish | Electro-Tin Plated |
| Stud Size | 3/8 in |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Application | For use with copper or aluminum conductors |
| Standard & Approvals | UL E155027/486A/B |
| Number of Bolt Holes | 2 |
| Type | Stacked |
| Tongue Size | 2.34 in W x 0.75 in THK |
| Specifications | 3-Conductor, 0.41 in Hole Dia, 3/8 in Wrench, 550 in-lb Torque |
| Series | T2-Series |
