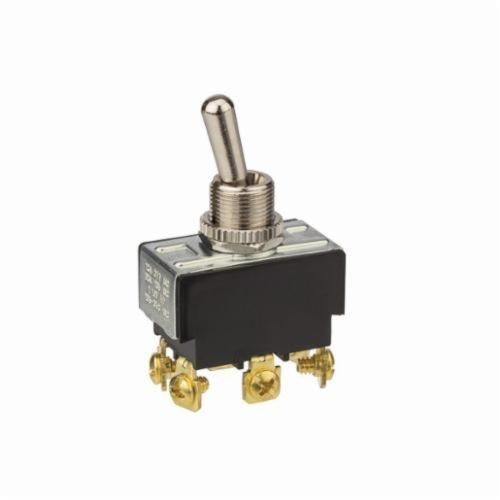

NSI 78270TS Bat Toggle Switch, 125/250 VAC, 20/10 A, 1-1/2, 2 hp Power Rating, DPDT Contact
NSI 78270TS Bat Toggle Switch, 125/250 VAC, 20/10 A, 1-1/2, 2 hp Power Rating, DPDT Contact
SKU: NSI78270TS
Manufacturer Part Number: 78270TS
UPC: 662381782700
Documents
Features
- Nickel plated brass bat handle
- ON/ON (maintained)
Specification
| Mounting | Snap-In |
|---|---|
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | NSI78270TS |
| Contact Rating | 20 A at 125 VAC, 10 A at 250 VAC |
| Dimensions | 1.3 in L x 0.75 in W x 0.77 in H |
| Terminal Type | Screw |
| Voltage Rating | 125/250 VAC |
| Contact Configuration | DPDT |
| Amperage Rating | 20/10 A |
| Actuator | Toggle |
| Power Rating | 1-1/2 hp/2 hp |
| Standard & Approvals | CSA Certified, RU Recognized |
| Application | Motor-Equipment Control |
