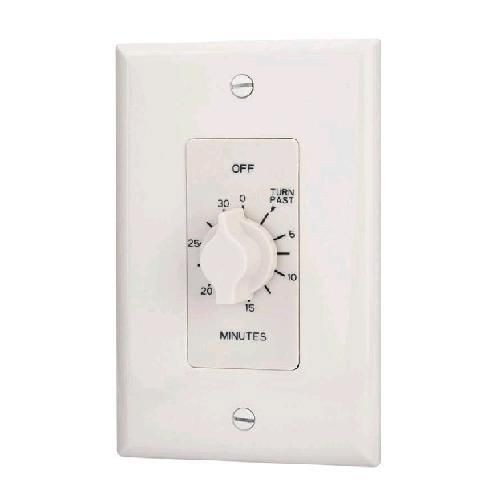

NSI Tork® A560MW Auto Off Interval Mechanical Spring Wound Timer, 60 min Setting, 125/250/277 VAC, 1 hp, 2 hp, SPDT Contact, 1 Pole

Selected NSI Tork® A560MW Auto Off Interval Mechanical Spring Wound Timer, 60 min Setting, 125/250/277 VAC, 1 hp, 2 hp, SPDT Contact, 1 Pole
NSI Tork® A560MW Auto Off Interval Mechanical Spring Wound Timer, 60 min Setting, 125/250/277 VAC, 1 hp, 2 hp, SPDT Contact, 1 Pole

Documents

Features

  • Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model
  • No neutral required. Great for retrofit use as single or in multi-gang box with no de-rating
  • Interval timer
  • Single phase
  • Contact initiation
  • Single gang wall plate
  • 7 A at 125 VAC (tungsten), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (resistive), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (inductive)
  • 1 hp at 125 VAC, 2 hp at 250 VAC
  • 50/60 Hz
  • No hold in wall time switch
  • White

Specification

Mounting Type
Wall
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20/10 A
Catalog ID
TORA560MW
Contact Form
SPST
Dimensions
5 in H x 3 in W
Series
A
Temperature Rating
32 to 122 deg F
Time Setting
60 min
Type
Mechanical
Voltage Rating
125/250/277 VAC
Application
Whole House Fans, Indoor, Outdoor Lighting, Bathroom Fans and Self Storage Control
Standard & Approvals
cULus Listed
Horsepower
1 hp/2 hp
