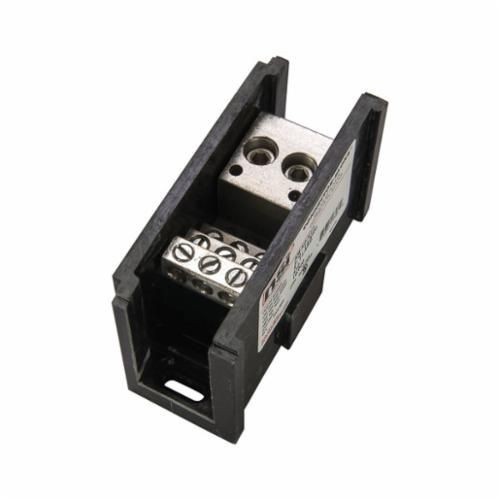

NSI Connector Bloks™ AM-K2-H12 Double Primary Power Distribution Block, 600 VAC, 350 A, 1 Poles, 14 to 2/0 AWG Wire, Aluminum
NSI Connector Bloks™ AM-K2-H12 Double Primary Power Distribution Block, 600 VAC, 350 A, 1 Poles, 14 to 2/0 AWG Wire, Aluminum
SKU: NSIAM-K2-H12
Manufacturer Part Number: AM-K2-H12
UPC: 662381165602
Documents
Features
- 2 mounting holes
- Power distribution blocks are made of high strength, high-conductivity material
- Mounted in a high-strength glass-filled polyester base
- Each block can stand alone or combine with other blocks to form a multi-block set
- 14 terminals
- Glass filled polyester base
- Medium size
- (2) 14 - 2/0 AWG line, (12) 14 - 4 AWG load
Specification
| Material | Aluminum |
|---|---|
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 350 A |
| Catalog ID | NSIAM-K2-H12 |
| Color | Black |
| Dimensions | 4 in L x 1.71 in W x 2.62 in H |
| Primary Connections/Pole | 2 |
| Secondary Connection/Pole | 12 |
| Type | Double Primary |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 2/0 AWG |
| Application | Terminate, Splice, Tap Power Connectors |
| Standard & Approvals | CSA Certified, UL 1059 Listed |
