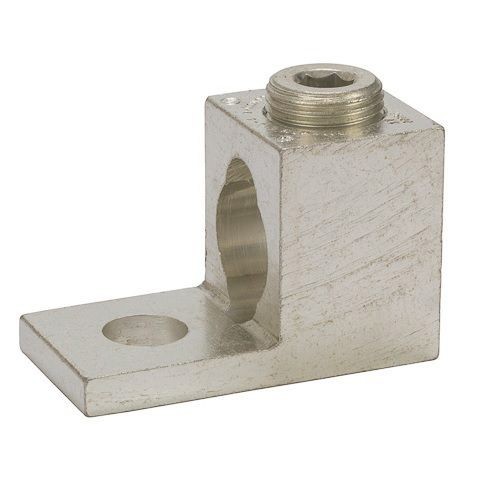

NSI BS400T Dual Rated Mechanical Terminal Lug, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Aluminum/Copper Conductor, 9/16 in Stud, 6061-T6 Aluminum Alloy
NSI BS400T Dual Rated Mechanical Terminal Lug, 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil Aluminum/Copper Conductor, 9/16 in Stud, 6061-T6 Aluminum Alloy
SKU: NSIBS400T
Manufacturer Part Number: BS400T
UPC: 662381002006
Features
- Set screw connectors that will accept either one or two wires
- Made of 6061T-6 aluminum alloy
- Electro tin plated for low contact resistance
- (1) 4 AWG to 600 kcmil, (2) 1/0 AWG to 250 kcmil conductor
Specification
| Material | 6061-T6 Aluminum Alloy |
|---|---|
| Series | BS Series |
| Specifications | 2-Conductor, 1-Mounting Hole, 1-Pole, 1-Port, 3/8 in Hex Wrench Size, 500 in-lb Torque |
| Stud Size | 9/16 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.725 in L x 0.312 in THK |
| Type | Dual Rated Mechanical |
| Voltage Rating | 600 VAC |
| Application | For use with copper or aluminum conductors and wire termination applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, UL 486A/B, CSA 70142/701642, KM Approved |
| Conductor Size | 4 AWG to 600 kcmil, 1/0 AWG to 250 kcmil |
| Dimensions | 2.81 in L x 1.38 in W x 1.81 in H |
| Color | Aluminum |
| Conductor Type | Aluminum/Copper |
| Finish | Aluminum |
