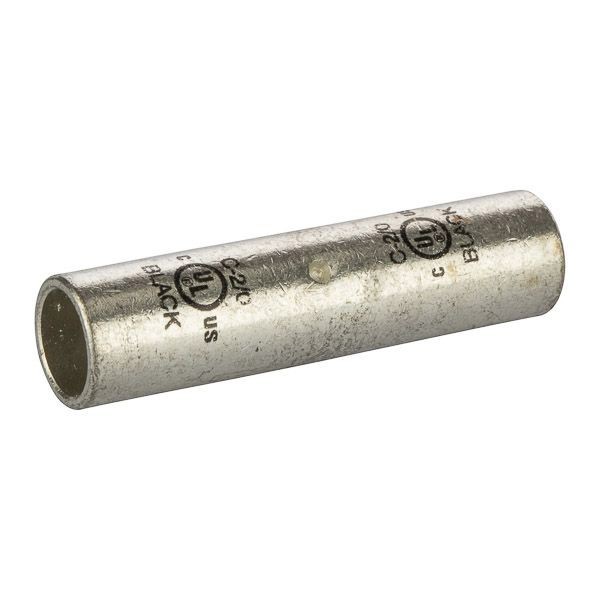

NSI C-2/0 C Series Long Barrel Compression Splice, 2/0 AWG Stranded Conductor, 2-1/4 in L, Copper
NSI C-2/0 C Series Long Barrel Compression Splice, 2/0 AWG Stranded Conductor, 2-1/4 in L, Copper
SKU: NSIC-2/0
Manufacturer Part Number: C-2/0
UPC: 662381037565
Features
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin plated to provide corrosion resistance
- Marked with die index and color coded
- Suitable for use at voltages up to 35 kV provided connector is properly installed to cable manufacturer voltage stress relief instructions
- 5 kV is the maximum voltage in all bare splices
Specification
| Length | 2-1/4 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Black |
| Conductor Size | 2/0 AWG |
| Conductor Type | Stranded |
| Finish | Tin Plated |
| Series | C Series |
| Specifications | 2-Conductor, 1-Pole |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Application | Terminate, Splice and Tap Power Connector Applications |
| Standard & Approvals | cULus Listed, UL 486A/467, NEC 310.15, KM Approved |
| Dimensions | 0.44 in ID x 0.56 in OD |
| Catalog ID | NSIC-2/0 |
| Type | Long Barrel |
