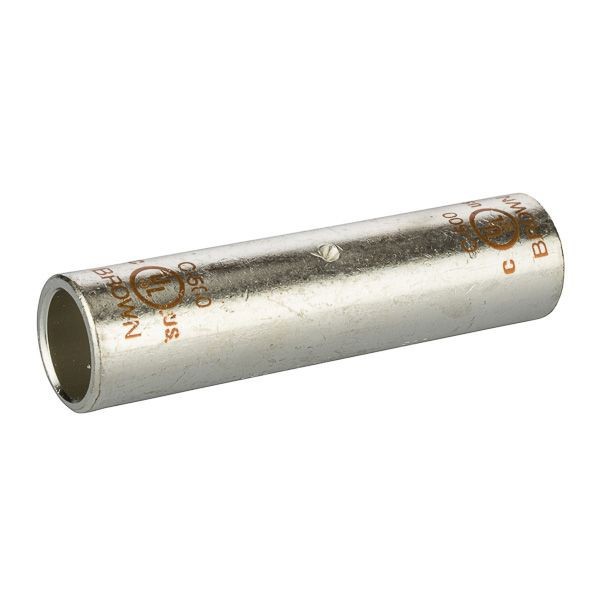

NSI C-500 C Series Long Barrel Compression Splice, 500 kcmil Stranded Conductor, 4-1/4 in L, Copper
NSI C-500 C Series Long Barrel Compression Splice, 500 kcmil Stranded Conductor, 4-1/4 in L, Copper
SKU: NSIC-500
Manufacturer Part Number: C-500
UPC: 662381037633
Documents
Features
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin plated to provide corrosion resistance
- Marked with die index and color coded
- Suitable for use at voltages up to 35 kV provided connector is properly installed to cable manufacturer voltage stress relief instructions
- 5 kV is the maximum voltage in all bare splices
Specification
| Length | 4-1/4 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | NSIC-500 |
| Color | Brown |
| Conductor Size | 500 kcmil |
| Conductor Type | Stranded |
| Dimensions | 0.83 in ID x 1.06 in OD |
| Finish | Tin Plated |
| Series | C Series |
| Specifications | 2-Conductor, 1-Pole |
| Temperature Rating | 90 deg C |
| Type | Long Barrel |
| Voltage Rating | 600 VAC |
| Application | Terminate, Splice and Tap Power Connector Applications |
| Standard & Approvals | cULus Listed, UL 486A/467, NEC 310.15, KM Approved |
