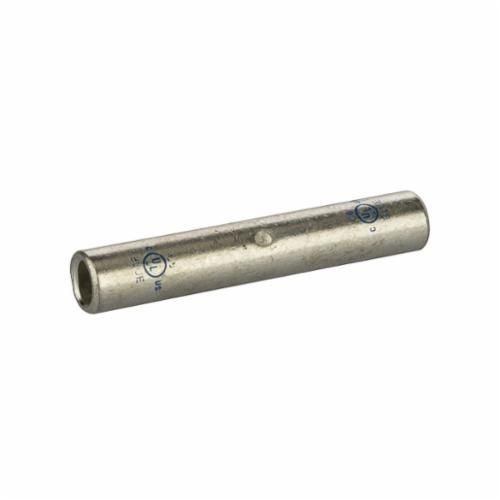

NSI C-6 Dual Rated Compression Splice, 6 AWG Conductor, 1-3/4 in L, Long Barrel, Copper, Blue
NSI C-6 Dual Rated Compression Splice, 6 AWG Conductor, 1-3/4 in L, Long Barrel, Copper, Blue
SKU: NSIC-6
Manufacturer Part Number: C-6
UPC: 662381037503
Documents
Features
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin-plated to provide corrosion resistance
- Marked with die index and color coded
- Suitable for use at voltages up to 35 kV provided connector is properly taped
- 5 kV is the maximum voltage in all bare splices
- For applications greater than 2000 V, consult the cable manufacturer for voltage stress relief instructions
Specification
| Length | 1-3/4 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Type | Long |
| Color | Blue |
| Conductor Size | 6 AWG |
| Conductor Type | Stranded Copper |
| Finish | Tin Plated |
| Specifications | Single pole 2-Conductor |
| Temperature Rating | 90 deg C |
| Type | Dual Rated |
| Voltage Rating | 600 VAC |
| Application | For Splice, Terminate, Tap Power Connectors |
| Standard & Approvals | UL486 Listed |
| Catalog ID | NSIC-6 |
| Barrel Size | 0.2 in ID x 0.3 in OD |
