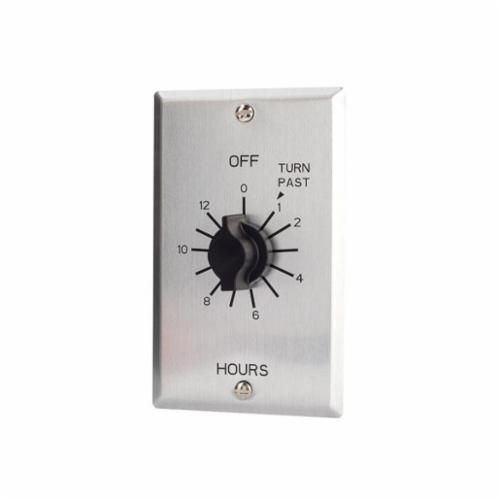

NSI Tork® C512H Auto Off Interval Mechanical Spring Wound Timer, 12 hr Setting, 125/250/277 VAC, 1 hp, 2 hp, SPDT Contact, 1 Pole
NSI Tork® C512H Auto Off Interval Mechanical Spring Wound Timer, 12 hr Setting, 125/250/277 VAC, 1 hp, 2 hp, SPDT Contact, 1 Pole
SKU: TORC512H
Manufacturer Part Number: C512H
UPC: 786261155139
Documents
Features
- Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model
- No neutral required. Great for retrofit use as single or in multi-gang box with no de-rating
- Interval timer
- Single phase
- Contact initiation
- Single gang wall plate
- 7 A at 125 VAC (tungsten), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (resistive), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (inductive)
- 1 hp at 125 VAC, 2 hp at 250 VAC
- 50/60 Hz
- No hold commercial grade in wall time switch
- Metal brushed aluminum
Specification
| Mounting Type | Wall |
|---|---|
| Number Of Poles | 1 |
| Series | C |
| Temperature Rating | 32 to 122 deg F |
| Time Setting | 12 hr |
| Type | Mechanical |
| Application | Ventilating Fans, HVAC, Whirlpools, Self Storage, Motors and Pump Control |
| Standard & Approvals | cULus Listed |
| Amperage Rating | 20/10 A |
| Dimensions | 5 in H x 3 in W |
| Contact Form | SPST |
| Horsepower | 1 hp/2 hp |
| Voltage Rating | 125/250/277 VAC |
