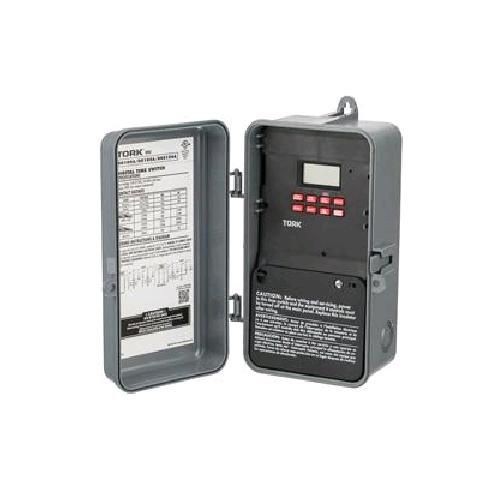

NSI Tork® DG100A Time Switch, 1 min to 7 days Setting, 120 to 277 VAC, 1/4 to 1 hp, 1/4 to 2 hp, 1NO-1NC/DPD Contact, 2 Poles
NSI Tork® DG100A Time Switch, 1 min to 7 days Setting, 120 to 277 VAC, 1/4 to 1 hp, 1/4 to 2 hp, 1NO-1NC/DPD Contact, 2 Poles
SKU: TORDG100A
Manufacturer Part Number: DG100A
UPC: 786261822086
Documents
Features
- 56 ON/OFF set points allow individual programs for each day of the week at a minimum 1 min apart
- Has 2 sec contact closures for on and off control of mechanically held contactors or latching relays
- 9-holiday blocks can be set for individual days or for duration of any number of day
- Automatic adjustment (can be omitted)
- Until the next regularly scheduled on or OFF, automatic operation then resumes
- AM/PM or 24 hr clock format
- Permanent schedule retention with memory module
- Super capacitor provides 7-days of real time backup
- Noryl indoor-outdoor with lockable hasp enclosure
- 50/60 Hz frequency rating
Specification
| Mounting Type | Screw |
|---|---|
| Number of Channels | 1 |
| Number Of Poles | 2 |
| Operation Mode | Astro 365-7 Days |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Display | LED |
| Enclosure Type | NEMA 3R |
| Series | DG100 |
| Temperature Rating | -31 to 131 deg F |
| Type | Digital |
| Voltage Rating | 120 to 277 VAC |
| Application | Indoor/Outdoor Lighting, HVAC Equipment, School Warning and other Traffic Lights, Water Heaters in Offices, Churches and Factories |
| Standard & Approvals | cULus Listed |
| Time Setting | 1 min to 7 days |
| Horsepower | 0.25 to 1 hp at 120 VAC/0.25 to 2 hp at 240 VAC |
| Dimensions | 5 in L x 4-1/2 in W x 9-1/8 in H |
| Contact Form | NO-NC DPDT |
| Catalog ID | TORDG100A |
| Amperage Rating | 20/10 A |
