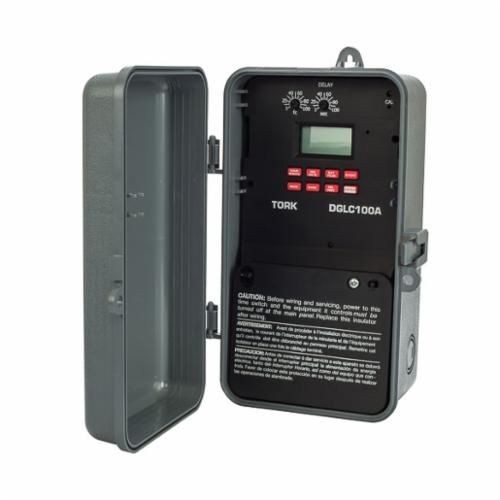

NSI Tork® DGLC100A-NC DG Series On/Off Time Switch With Photocontrol, 7 days Setting, 120 to 277 VAC, 2 hp, DPDT Contact, 2 Poles
NSI Tork® DGLC100A-NC DG Series On/Off Time Switch With Photocontrol, 7 days Setting, 120 to 277 VAC, 2 hp, DPDT Contact, 2 Poles
SKU: TORDGLC100A-NC
Manufacturer Part Number: DGLC100A-NC
UPC: 786261822239
Documents
Features
- Scheduling 56 On/Off set points provide individual programs for each day of the week, minimum setting is 1 min
- Sunset astronomic adjusts daily to changes in sunset time, adjustable 10 to 60 deg northern or southern latitudes, can be individually offset +/-1 to 240 min from both sunset and sunrise times
- Photosensor input unique push button set up assures accurate operation with automatic calibration that adjusts for wire size and distance
- Light level activation turn on is user settable from 1 to 100 foot candle, turn off is a maximum of 2 times turn on level, each channel has an independent setting, includes a user settable delay before On and Off between 1 to 90 sec
- Remote override on each channel has independent input for a maintained dry contact closure, may use tork model SS410 and TRP-24B for timed override, may use with occupancy sensor with dry contacts as override remote override on
- Manual override until the next regularly scheduled On or Off, automatic operation then resumes
- Block holiday 9 holiday blocks can be set for individual days or for duration of any number of days
- Daylight saving automatic adjustment (can be omitted)
- Leap year automatic compensation
- AM/PM or 24 hr clock format
- Power outage backup permanent schedule retention, super capacitor provides 7 days of real time backup
Specification
| Mounting Type | Threaded |
|---|---|
| Number of Channels | 1 |
| Number Of Poles | 2 |
| On/Off Ratio | 56 |
| Series | DG Series |
| Temperature Rating | -31 to 131 deg F |
| Type | On/Off |
| Voltage Rating | 120 to 277 VAC |
| Application | Interior and Exterior Lighting, Open Office Zoning, Hallways, Meeting and Sales Areas, Stock Rooms and Warehouses, Signage and Store Windows, Security, Parking Lots |
| Standard & Approvals | UL 916, cULus Listed, California Title 24 Compliant, ASHRAE 90.1 |
| Amperage Rating | 20 A |
| Dimensions | 5 in L x 4-1/2 in W x 9-1/8 in H |
| Contact Form | DPDT |
| Display | Digital |
| Enclosure Type | NEMA 3R |
| Operation Mode | 7 days |
| Horsepower | 2 hp |
| Time Setting | 7 days |
