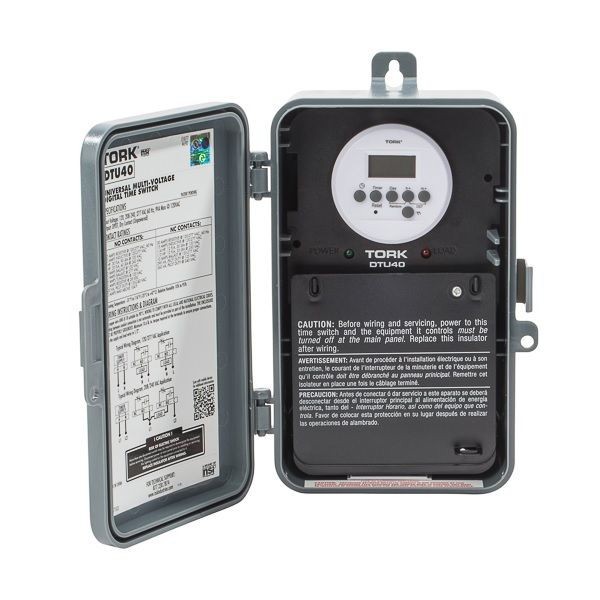

NSI Tork® DTU40 1-Phase Automatic Voltage Detection Time Switch, 120/208/240/277 VAC, 1/4 to 1 hp, 1/2 to 2 hp, DPDT Contact, 2 Poles
NSI Tork® DTU40 1-Phase Automatic Voltage Detection Time Switch, 120/208/240/277 VAC, 1/4 to 1 hp, 1/2 to 2 hp, DPDT Contact, 2 Poles
SKU: TORDTU40
Manufacturer Part Number: DTU40
UPC: 786261240040
Documents
Features
- 7 on and off pairs of set points for individual programs on each day of the week minimum setting is 1 min
- Manual button push for one hour adjustment
- Until the next regularly scheduled on or OFF, automatic operation then resume
- Varies on and off times to create "lived-in" look when away
- AM/PM clock format
- Battery retains time and schedule power outage backup
- 8 to 18 AWG terminal range
- 6 VAC power consumption
- Polycarbonate indoor-outdoor enclosure
- 50/60 Hz frequency rating
Specification
| Mounting Type | Screw |
|---|---|
| Number of Channels | 1 |
| Number Of Poles | 2 |
| Series | DTU40 |
| Type | Automatic Voltage Detection Digital |
| Application | Pump, Motors, Fans, Signs, Lighting, Water Heaters, Heating and Air Conditioning Control |
| Standard & Approvals | cULus Listed |
| Amperage Rating | 40 A |
| Contact Form | DPDT |
| Enclosure Type | NEMA 3R |
| Horsepower | 0.25 hp to 1 hp at 120 VAC/0.5 hp to 2 hp at 240 VAC |
| Dimensions | 5.625 in L x 4.5 in W x 8.312 in H |
| Temperature Rating | -31 to 116 deg F |
| Operation Mode | 7 days |
| Display | LED |
| Voltage Rating | 120/208/240/277 VAC |
