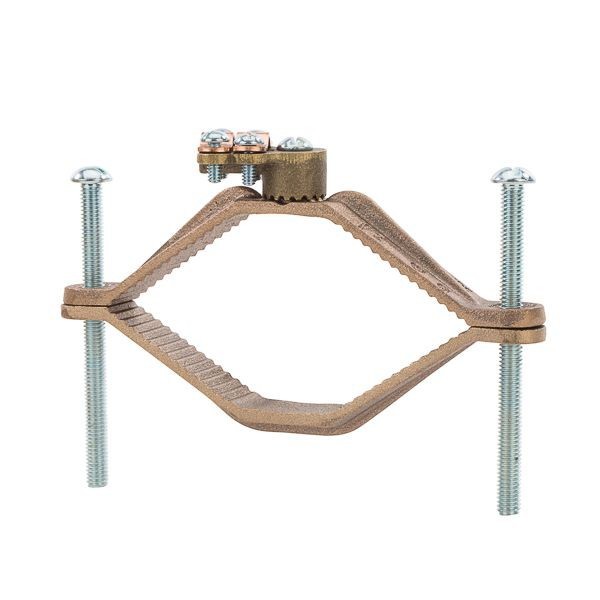

NSI G-16 Heavy Duty Ground Clamp With Adapter, 8 to 4/0 AWG Conductor, Silicon Bronze
NSI G-16 Heavy Duty Ground Clamp With Adapter, 8 to 4/0 AWG Conductor, Silicon Bronze
SKU: NSIG-16
Manufacturer Part Number: G-16
UPC: 662381010179
Features
- Heavy duty bronze adapters have serrations that match the serrations on the ground clamp, assuring positive lock
- All adapters fit all clamps for the ultimate flexibility
- Assembled with zinc plated steel hardware
- 8 to 4/0 AWG stranded conductor
Specification
| Pipe Size | 4-1/2 to 6 in |
|---|---|
| Type | Heavy Duty |
| Standard & Approvals | UL 467, cULus Listed, CSA Certified |
| Color | Bronze |
| Application | For grounding wire and connecting rigid conduit and ground conductor to water pipe |
| Series | G Series |
| Material | Silicon Bronze |
| Conductor Type | Stranded |
| Dimensions | 7.916 in L x 0.933 in W x 4.565 in H |
| Conductor Size | 8 to 4/0 AWG |
