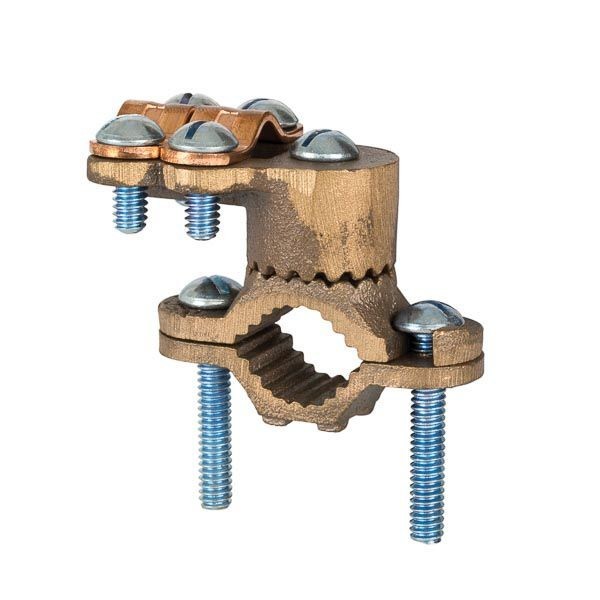

NSI G-3 Heavy Duty Ground Clamp With Armored Adapter, 8 to 4/0 AWG Conductor, Silicon Bronze

Selected G-3NSI G-3 Heavy Duty Ground Clamp With Armored Adapter, 8 to 4/0 AWG Conductor, Silicon Bronze
G-3NSI G-3 Heavy Duty Ground Clamp With Armored Adapter, 8 to 4/0 AWG Conductor, Silicon Bronze

Documents

Features

  • Heavy duty bronze adapters have serrations that match the serrations on the ground clamp, assuring positive lock
  • All adapters fit all clamps for the ultimate flexibility
  • Assembled with zinc plated steel hardware
  • 8 to 4/0 AWG stranded conductor

Specification

Material
Silicon Bronze
Minimum Order Qty
1
Order Interval
1
Catalog ID
NSIG-3
Color
Bronze
Conductor Size
8 to 4/0 AWG
Conductor Type
Stranded
Dimensions
2.32 in L x 0.748 in W x 1.437 in H
Pipe Size
1-1/2 to 1 in
Series
G Series
Type
Heavy Duty
Application
For grounding wire and connecting rigid conduit and ground conductor to water pipe
Standard & Approvals
UL 467, cULus Listed, CSA Certified
