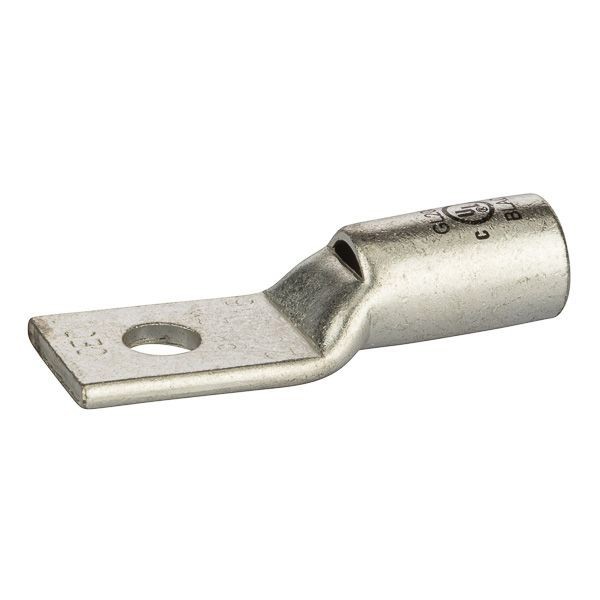

NSI GL2056 GL Series 1-Hole Compression Lug With Peep Hole, 2/0 AWG Stranded Conductor, 5/16 in Stud, Copper
NSI GL2056 GL Series 1-Hole Compression Lug With Peep Hole, 2/0 AWG Stranded Conductor, 5/16 in Stud, Copper
SKU: NSIGL2056
Manufacturer Part Number: GL2056
UPC: 662381036315
Documents
Features
- Produced from high conductivity copper tubing
- Peep hole allows easy inspection of the termination to assure complete cable insertion
- Tin plated to provide corrosion and low contact resistance
- Marked with die index and color coded
- Listed for 35 kV maximum when properly installed
- For applications greater than 2000 V, install to cable manufacturer voltage stress relief instructions
Specification
| Material | Copper |
|---|---|
| Mounting Hole Size | 5/16 in |
| Overall Length | 2.24 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 0.44 in ID x 0.56 in OD x 0.94 in L |
| Barrel Type | Short |
| Catalog ID | NSIGL2056 |
| Color | Black |
| Conductor Size | 2/0 AWG |
| Conductor Type | Stranded |
| Series | GL Series |
| Stud Size | 5/16 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 1.06 in L x 0.81 in W x 0.12 in THK |
| Type | 1-Hole |
| Voltage Rating | 600 VAC |
| Application | Terminate, Splice and Tap Power Connector Applications |
| Standard & Approvals | UL 486, KM Approved, cULus 155027 |
