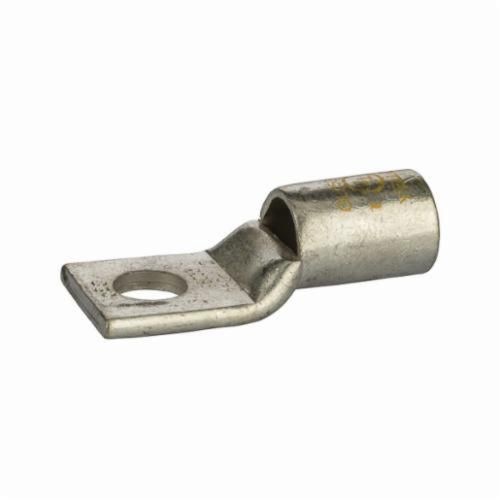

NSI GL25048 1-Hole Compression Lug With Peep Hole, 250 kcmil Stranded Conductor, 1/2 in Stud, Copper

Selected GL25048NSI GL25048 1-Hole Compression Lug With Peep Hole, 250 kcmil Stranded Conductor, 1/2 in Stud, Copper
GL25048NSI GL25048 1-Hole Compression Lug With Peep Hole, 250 kcmil Stranded Conductor, 1/2 in Stud, Copper

Documents

Features

  • Short barrel copper compression lugs with peep hole is a type of copper compression connector that is produced from high conductivity copper tubing
  • They are tin plated to provide corrosion resistance and are marked with die index and color coded for easy reference
  • Listed for 35KV maximum when properly installed
  • 250 kcmil stranded conductor size
  • 1.09 in W

Specification

Material
Copper
Overall Length
2.48 in
Stud Size
1/2 in
Temperature Rating
90 deg C
Type
1-Hole
Voltage Rating
600 VAC
Application
For Terminate, Splice and Tap Power Connectors
Standard & Approvals
UL 486 Listed, RoHS Compliant
Conductor Size
250 kcmil
Dimensions
1.09 in W
Barrel Style
Short
Color Code
Yellow
