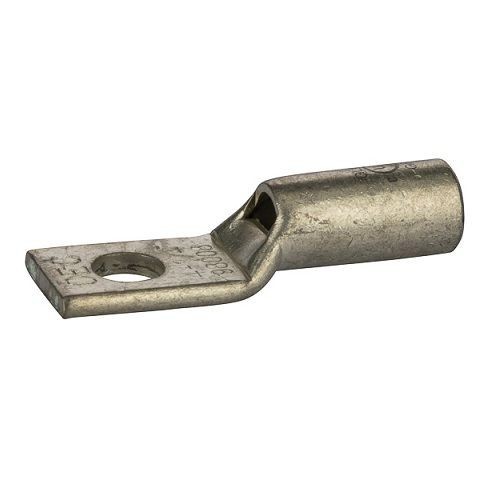

NSI GL414 1-Hole Compression Lug With Peep Hole, 4/0 AWG Stranded Conductor, 1/4 in Stud, Copper
NSI GL414 1-Hole Compression Lug With Peep Hole, 4/0 AWG Stranded Conductor, 1/4 in Stud, Copper
SKU: NSIGL414
Manufacturer Part Number: GL414
UPC: 662381036254
Documents
Features
- Short barrel copper compression lugs with peep hole is a type of copper compression connector that is produced from high conductivity copper tubing
- They are tin plated to provide corrosion resistance and are marked with die index and color coded for easy reference
- Listed for 35 kV maximum when properly installed
Specification
| Material | Copper |
|---|---|
| Temperature Rating | 90 deg C |
| Tongue Size | 0.67 in L x 0.49 in W x 0.08 in THK |
| Type | 1-Hole |
| Voltage Rating | 600 VAC |
| Application | For splice, tap power connectors and terminate |
| Standard & Approvals | UL 486 |
| Conductor Size | 4/0 AWG |
| Dimensions | 0.49 in W |
| Barrel Size | 0.25 in ID x 0.34 in OD |
| Barrel Style | Short |
| Color | Gray |
| Conductor Type | Stranded |
| Mounting Hole Size | 1/4/2025 12:00:00 AM |
| Overall Length | 1/1/2002 12:00:00 AM |
| Stud Size | 1/4/2025 12:00:00 AM |
