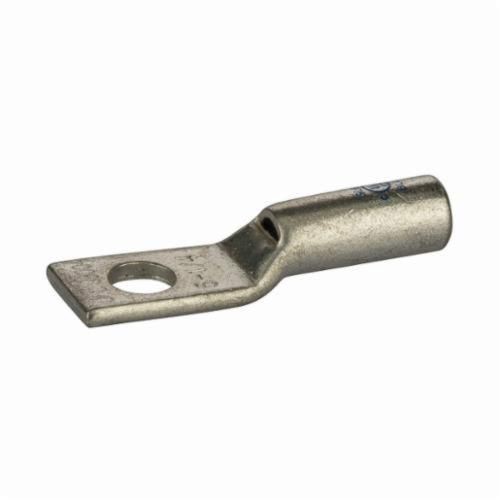

NSI GL614 1-Hole Compression Lug With Peep Hole, 6 AWG Stranded Conductor, 1/4 in Stud, Copper
NSI GL614 1-Hole Compression Lug With Peep Hole, 6 AWG Stranded Conductor, 1/4 in Stud, Copper
SKU: NSIGL614
Manufacturer Part Number: GL614
UPC: 662381036025
Documents
Features
- Produced from high conductivity copper tubing
- Allows easy inspection of the termination to assure complete cable insertion
- Marked with die index and color coded blue
- CULus Listed for 35KV maximum when properly installed
- 6 AWG stranded conductor size
Specification
| Material | Copper |
|---|---|
| Overall Length | 1-1/2 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 0.2 in ID x 0.3 in OD |
| Barrel Style | Short |
| Catalog ID | NSIGL614 |
| Color Code | Blue |
| Conductor Size | 6 AWG |
| Dimensions | 0.42 in W |
| Stud Size | 1/4 in |
| Temperature Rating | 90 deg C |
| Type | 1-Hole |
| Voltage Rating | 600 VAC |
| Application | For Terminate, Splice and Tap Power Connectors |
| Standard & Approvals | UL 486 Listed, cULus Listed, RoHS Compliance |
| Tongue Size | 0.67 in L x 0.42 in W x 0.08 in THK |
