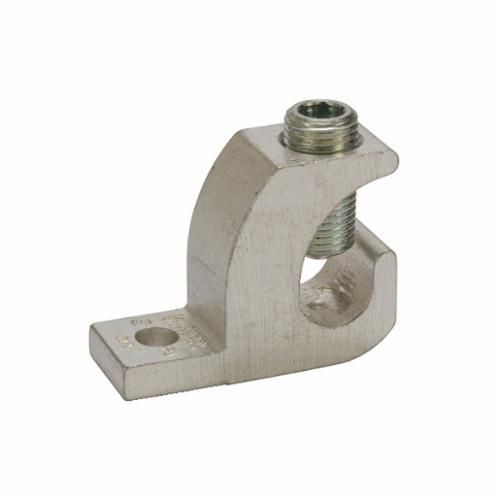

NSI GLA-250 Dual Rated Lay-In Mechanical Terminal Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Aluminum
NSI GLA-250 Dual Rated Lay-In Mechanical Terminal Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Aluminum
SKU: NSIGLA-250
Manufacturer Part Number: GLA-250
UPC: 662381001931
Documents
Short Description
Features
- Lay-in connectors offer the ultimate in flexibility
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- Suitable for use with both copper and aluminum conductors
- Hex socket set screw type
- 1 stud of 3/8 in
- 20/Pack
Specification
| Material | Aluminum Alloy |
|---|---|
| Number of Bolt Holes | 1 |
| Series | GLA |
| Specifications | 1 Pole, 1 Conductor |
| Stud Size | 3/8 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.4 in L x 51/64 in W x 0.3 in T |
| Tongue Style | Straight |
| Type | Dual Rated Lay-In |
| Voltage Rating | 600 VAC |
| Application | For Grounding and Continuous Loop Applications and Wire Termination |
| Standard & Approvals | cULus, UL Listed( 486A/B) |
| Conductor Size | 250 MCM to 6 AWG |
| Dimensions | 2.2 in L x 0.8 in W x 1.7 in H |
| Conductor Type | Aluminum/Copper |
| Finish | Aluminum |
