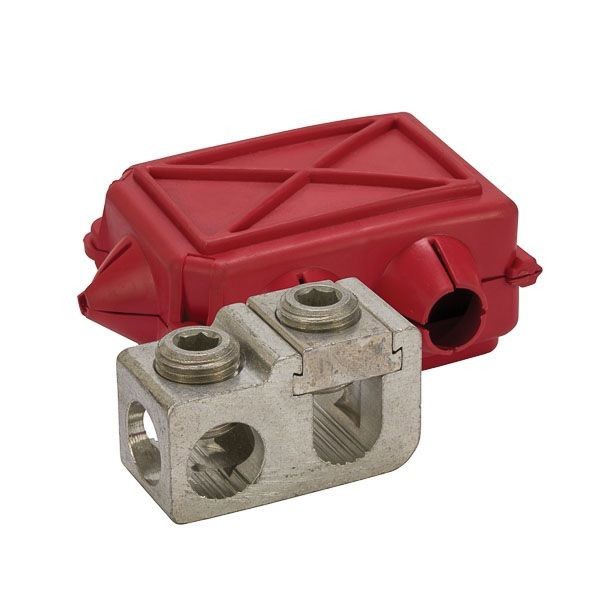

NSI GP-250WC Dual Rated Parallel Tap Connector With Red Cover, Aluminum/Copper Conductor, 6 AWG Min Run/Tap, 250 kcmil Max Run/Tap, Aluminum
NSI GP-250WC Dual Rated Parallel Tap Connector With Red Cover, Aluminum/Copper Conductor, 6 AWG Min Run/Tap, 250 kcmil Max Run/Tap, Aluminum
SKU: NSIGP-250WC
Manufacturer Part Number: GP-250WC
UPC: 662381003041
Documents
Features
- Excellent for tapping of main conductor due to lay-in feature
- Perpendicular tap allows for parallel or "T" tap configuration
- Flexible cover allows for either parallel or "T" tap wire entry
- Secure snap cover eliminates need for taping
- Electro-tin plated for low contact resistance
- 2 conductors
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Conductor Type | Aluminum/Copper |
| Finish | Electro-Tin Plated |
| Series | GP |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Standard & Approvals | CSA Certified, UL 486B |
| Application | For Wire Termination |
| Minimum Run/Tap | 1/0 AWG/6 AWG |
| Maximum Run/Tap | 250 MCM |
| Dimensions | 3.44 in L x 3.18 in W x 1.63 in H |
| Catalog ID | NSIGP-250WC |
