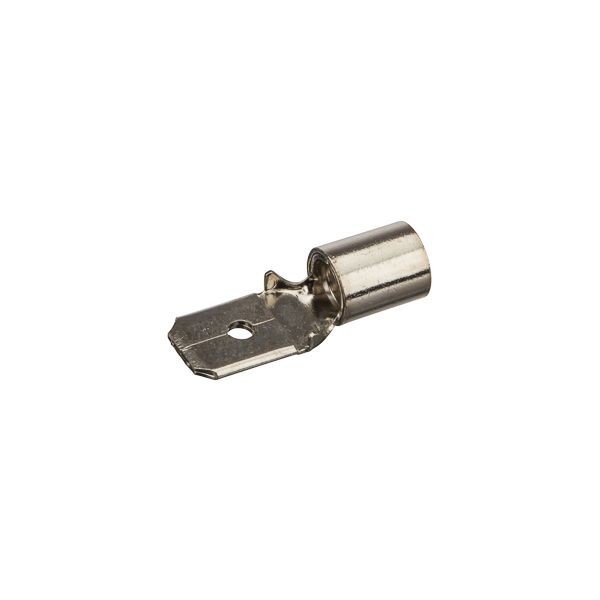

NSI Miniterms HTM12-250-3 HT Series High Temperature Non-Insulated Male Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Copper, Silver
NSI Miniterms HTM12-250-3 HT Series High Temperature Non-Insulated Male Disconnect, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Copper, Silver
SKU: NSIHTM12-250-3
Manufacturer Part Number: HTM12-250-3
UPC: 662381079176
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 50 |
| Order Interval | 50 |
| Barrel Type | Butted Seam |
| Color | Silver |
| Conductor Size | 12 to 10 AWG |
| Finish | Nickel Plated |
| Series | HT Series |
| Specifications | 1-Terminal, 1/4 in Stud Size |
| Tab Size | 0.25 in W x 0.032 in THK |
| Temperature Rating | 483 deg C |
| Type | High Temperature Non-Insulated |
| Voltage Rating | 600 VAC |
| Application | For high temperature operating conditions and wire termination applications |
| Standard & Approvals | cULus Listed |
| Dimensions | 0.685 in L x 0.25 in W |
| Catalog ID | NSIHTM12-250-3 |
