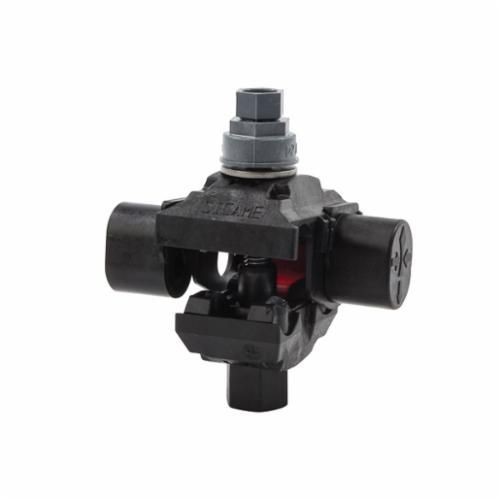

NSI EASY-TAP IPCS1002 Dual Rated Piercing Insulation Connector, 8 to 1/0 AWG Aluminum/Copper Conductor, Fiber Reinforced Thermal Plastic
NSI EASY-TAP IPCS1002 Dual Rated Piercing Insulation Connector, 8 to 1/0 AWG Aluminum/Copper Conductor, Fiber Reinforced Thermal Plastic
SKU: NSIIPCS1002
Manufacturer Part Number: IPCS1002
UPC: 662381082626
Documents
Features
- Safe to use and are completely insulated, no need to strip wire
- Can be installed on energized conductors with no contact at any point
- Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened
- Watertight and corrosion-free
- Versatile, reliable and no spacer required between connections
- Easy to install and no special tools and third hand required
- Connection sealed by a rubber grommet
- No migration of water
- No migration of water and no contamination between main and tap
- Can be used as a splice or a tap
- Suitable for solid and/or stranded wires
- Made of fiber reinforced thermal plastic
- 2 - 10 AWG tap size
Specification
| Material | Thermal Plastic |
|---|---|
| Mounting Type | Clamp |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | NSIIPCS1002 |
| Color | Black |
| Conductor Size | 1/0 to 8 AWG |
| Conductor Type | Aluminum/Copper |
| Dimensions | 2.2 in L x 1.8 in W x 3.1 in H |
| Finish | Thermal Plastic |
| Series | IPCS |
| Specifications | 190 A Copper, 150 A Aluminum |
| Temperature Rating | 90 deg C |
| Type | Dual Rated |
| Voltage Rating | 600 VAC |
| Application | For Copper to Copper, Copper to Aluminum and Aluminum to Aluminum, Splice and Tap Power Connectors |
| Standard & Approvals | AL9CU Rated, ANSI C119.4 Approved, UL 486B Listed |
