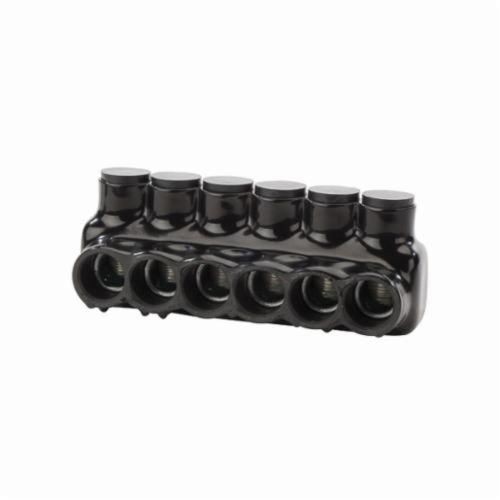

NSI Polaris™ IPLD250-6 IPLD Double Sided Entry Insulated Multi-Tap Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Plastisol

Selected IPLD250-6NSI Polaris™ IPLD250-6 IPLD Double Sided Entry Insulated Multi-Tap Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Plastisol
IPLD250-6NSI Polaris™ IPLD250-6 IPLD Double Sided Entry Insulated Multi-Tap Connector, 6 AWG to 250 kcmil Aluminum/Copper Conductor, Plastisol

Documents

Short Description

Polaris in original black. The centerpiece of NSi’s incredible product offering, Polaris in original black is the insulated connector that every other connector copies. Its introduction marked the beginning of a new age, providing the fastest, safest, most professional connection possible.

Features

  • Insulated with dielectric strength plastisol for tough mechanical protection
  • Molded for precise fit and supplied with removable plugs to close the entry port not being utilized
  • Wire entry ports on both sides of the connector to allow for access from either side
  • Eliminates the need for cover and taping
  • Will not support combustion
  • Not recommended for fine-stranded, flexible wire
  • Dual rated multi-conductor connector for use with copper and/or aluminum cables
  • 4/Carton

Specification

Material
Plastisol
Resistance
Abrasion, Chemical, UV
Voltage Rating
600 VAC
Standard & Approvals
AL9CU Approved, cULus Listed, UL 486B Listed
Conductor Type
Aluminum/Copper
Finish
Black
Application
For aluminum and copper cables and wire termination
Dimensions
5.52 in L x 2.28 in W x 2.18 in H
Conductor Size
250 MCM - 6 AWG
Type
Double Sided Entry
Temperature Rating
-45 to 90 deg C
Specifications
1 Pole, 6 Conductors, Class B and C Wire Type, 5/16 in Hex
Series
IPLD
