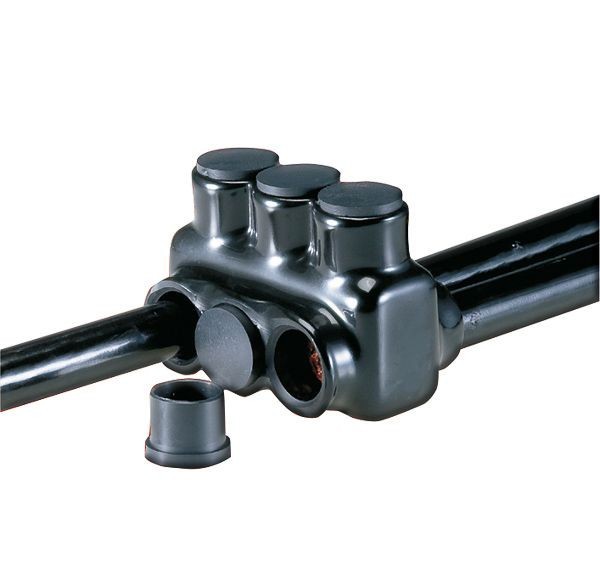

NSI Polaris™ IPLD500-12 IPLD Double Sided Entry Insulated Multi-Tap Connector, 4 AWG to 500 kcmil Aluminum/Copper Conductor, Plastisol

Selected IPLD500-12NSI Polaris™ IPLD500-12 IPLD Double Sided Entry Insulated Multi-Tap Connector, 4 AWG to 500 kcmil Aluminum/Copper Conductor, Plastisol
IPLD500-12NSI Polaris™ IPLD500-12 IPLD Double Sided Entry Insulated Multi-Tap Connector, 4 AWG to 500 kcmil Aluminum/Copper Conductor, Plastisol

Documents

Short Description

Polaris™ in original black. The centerpiece of NSI incredible product offering, Polaris™ in original black is the insulated connector that every other connector copies. Its introduction marked the beginning of a new age, providing the fastest, safest, most professional connection possible.

Features

  • Insulated with dielectric strength plastisol for tough mechanical protection
  • Molded for precise fit and supplied with removable plugs to close the entry port not being utilized
  • Wire entry ports on both sides of the connector to allow for access from either side
  • Eliminates the need for cover and taping
  • Will not support combustion
  • Not recommended for fine stranded, flexible wire
  • Dual rated multi-conductor connector for use with copper and/or aluminum cables

Specification

Material
Plastisol
Series
IPLD
Specifications
1 Pole, 12 Conductor, Class B and C Wire Type, 5/16 in Hex
Temperature Rating
-45 to 90 deg C
Type
Double Sided Entry
Voltage Rating
600 VAC
Application
For aluminum and copper cables and wire termination
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, AL9CU Approved, cULus Listed, UL 486B
Conductor Size
4 AWG to 500 kcmil
Dimensions
14.4 in L x 2.83 in W x 2.91 in H
Conductor Type
Aluminum/Copper
Finish
Black
