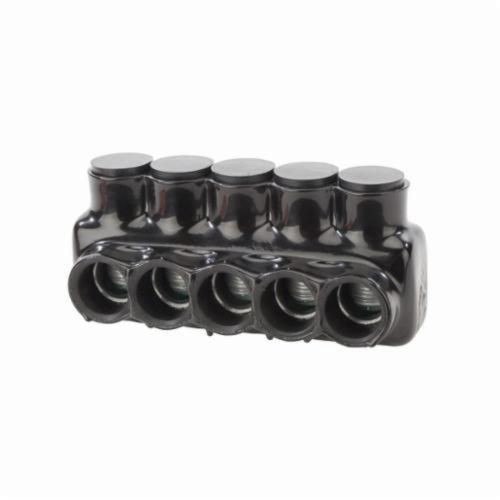

NSI Polaris™ IPLD500-5 IPLD Double Sided Entry Insulated Multi-Tap Connector, 4 AWG to 500 kcmil Aluminum/Copper Conductor, Plastisol
NSI Polaris™ IPLD500-5 IPLD Double Sided Entry Insulated Multi-Tap Connector, 4 AWG to 500 kcmil Aluminum/Copper Conductor, Plastisol
SKU: NSIIPLD500-5
Manufacturer Part Number: IPLD500-5
UPC: 662381925039
Documents
Short Description
Features
- Insulated with dielectric strength plastisol for tough mechanical protection
- Molded for precise fit and supplied with removable plugs to close the entry port not being utilized
- Wire entry ports on both sides of the connector to allow for access from either side
- Eliminates the need for cover and taping
- Will not support combustion
- Not recommended for fine-stranded, flexible wire
- Dual rated multi-conductor connector for use with copper and/or aluminum cables
- 2/Carton
Specification
| Material | Plastisol |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://youtu.be/xSTazdtSSCk |
| Catalog ID | NSIIPLD500-5 |
| Conductor Size | 500 MCM - 4 AWG |
| Conductor Type | Aluminum/Copper |
| Dimensions | 6.38 in L x 2.83 in W x 2.91 in H |
| Finish | Black |
| Resistance | Abrasion, Chemical, UV |
| Series | IPLD |
| Specifications | 1 Pole, 5 Conductors, Class B and C Wire Type, 5/16 in Hex |
| Temperature Rating | -45 to 90 deg C |
| Type | Double Sided Entry |
| Voltage Rating | 600 VAC |
| Standard & Approvals | AL9CU Approved, cULus Listed, UL 486B Listed |
| Application | For aluminum and copper cables and wire termination |
