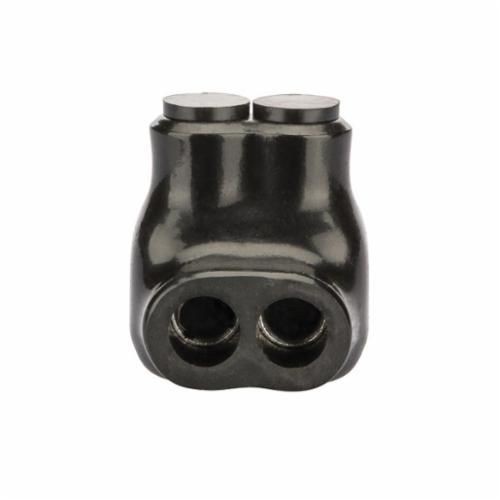

NSI Polaris™ IT-4A IT Series Double Sided Entry Insulated Multi-Tap Connector, 14 to 4 AWG Aluminum/Copper Conductor, Plastisol

Selected IT-4ANSI Polaris™ IT-4A IT Series Double Sided Entry Insulated Multi-Tap Connector, 14 to 4 AWG Aluminum/Copper Conductor, Plastisol
IT-4ANSI Polaris™ IT-4A IT Series Double Sided Entry Insulated Multi-Tap Connector, 14 to 4 AWG Aluminum/Copper Conductor, Plastisol

Documents

Short Description

Polaris in original black. The centerpiece of NSi’s incredible product offering, Polaris in original black is the insulated connector that every other connector copies. Its introduction marked the beginning of a new age, providing the fastest, safest, most professional connection possible.

Features

  • Insulated tap connectors are suitable for connecting two wires
  • Will not support combustion
  • Not recommended for fine-stranded, flexible wire
  • Available in two styles with wires being connected from the same side of the connector or opposite sides of the connector
  • Dual rated for use with copper and/or aluminum cables
  • 12/Carton

Specification

Material
Plastisol
Minimum Order Qty
1
Order Interval
1
Catalog ID
NSIIT-4A
Conductor Size
4 to 14 AWG
Conductor Type
Aluminum/Copper
Dimensions
1.12 in L x 1.18 in W x 1.38 in H
Finish
Black
Resistance
Abrasion, Chemical, UV
Series
IT
Temperature Rating
-45 to 90 deg C
Type
Double Sided Entry
Voltage Rating
600 VAC
Application
For Aluminum and Copper Cables, In-Line Splicers/Reducers and Wire Termination
Standard & Approvals
AL9CU Approved, cULus Listed, UL 486B Listed
Specifications
1 Pole, 2 Conductors, Class B and C Wire Type, 1/8 in Hex
