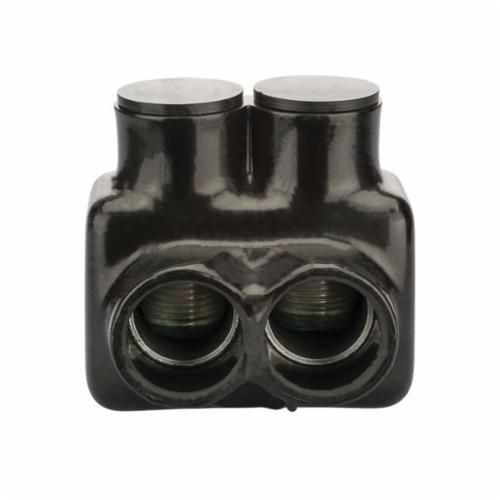

NSI Polaris™ IT-750 IT Series Double Sided Entry Insulated Multi-Tap Connector, 250 to 750 kcmil Aluminum/Copper Conductor, Plastisol

Selected IT-750NSI Polaris™ IT-750 IT Series Double Sided Entry Insulated Multi-Tap Connector, 250 to 750 kcmil Aluminum/Copper Conductor, Plastisol
IT-750NSI Polaris™ IT-750 IT Series Double Sided Entry Insulated Multi-Tap Connector, 250 to 750 kcmil Aluminum/Copper Conductor, Plastisol

Documents

Short Description

Polaris in original black. The centerpiece of NSi’s incredible product offering, Polaris in original black is the insulated connector that every other connector copies. Its introduction marked the beginning of a new age, providing the fastest, safest, most professional connection possible.

Features

  • Insulated tap connectors are suitable for connecting two wires
  • Supplied with removable access plugs to close the entry port not being utilized
  • Provided with open wire entry ports on both sides of the connector
  • Will not support combustion
  • Not recommended for fine-stranded, flexible wire
  • Available in two styles with wires being connected from the same side of the connector or opposite sides of the connector
  • Dual rated for use with copper and/or aluminum cables
  • 2/Carton

Specification

Material
Plastisol
Resistance
Abrasion, Chemical, UV
Series
IT
Specifications
1 Pole, 2 Conductors, Class B and C Wire Type, 3/8 in Hex
Temperature Rating
-45 to 90 deg C
Type
Double Sided Entry
Voltage Rating
600 VAC
Application
For Aluminum and Copper Cables, In-Line Splicers/Reducers and Wire Termination
Standard & Approvals
AL9CU Approved, cULus Listed
Conductor Size
750 - 250 MCM
Dimensions
3.48 in L x 3.5 in W x 3.5 in H
Conductor Type
Aluminum/Copper
Finish
Black
