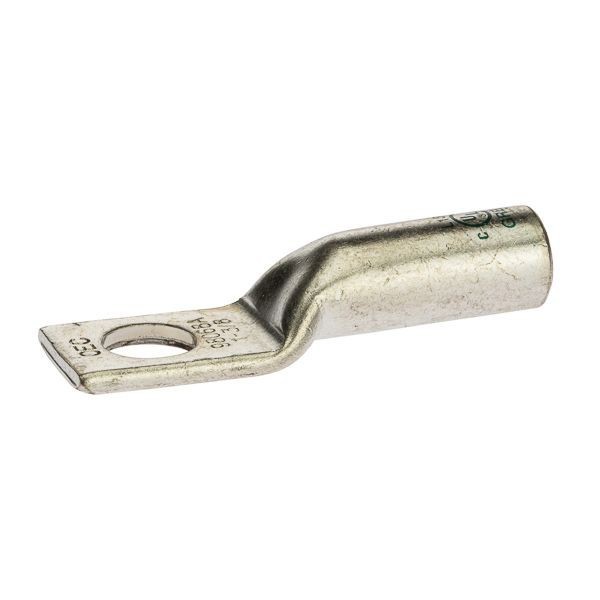

NSI L138 L Series 1-Hole Compression Lug, 1 AWG Stranded Conductor, 3/8 in Stud, Copper
NSI L138 L Series 1-Hole Compression Lug, 1 AWG Stranded Conductor, 3/8 in Stud, Copper
SKU: NSIL138
Manufacturer Part Number: L138
UPC: 662381034052
Documents
Features
- Produced from high conductivity copper tubing
- Tin plated to provide corrosion and low contact resistance
- Marked with die index and color coded
- For applications greater than 2000 V, consult the cable manufacturer for voltage stress relief instructions
Specification
| Material | Copper |
|---|---|
| Mounting Hole Size | 3/8 in |
| Series | L Series |
| Stud Size | 3/8 in |
| Temperature Rating | 90 deg C |
| Type | 1-Hole |
| Voltage Rating | 600 VAC |
| Application | Terminate, Splice and Tap Power Connector Applications |
| Standard & Approvals | UL 486, KM Approved, cULus Listed |
| Conductor Size | 1 AWG |
| Barrel Size | 0.358 in ID x 0.469 in OD x 1.102 in L |
| Barrel Type | Long |
| Color | Green |
| Conductor Type | Stranded |
| Tongue Size | 0.811 in L x 0.673 in W x 0.106 in THK |
| Overall Length | 1.1 in |
