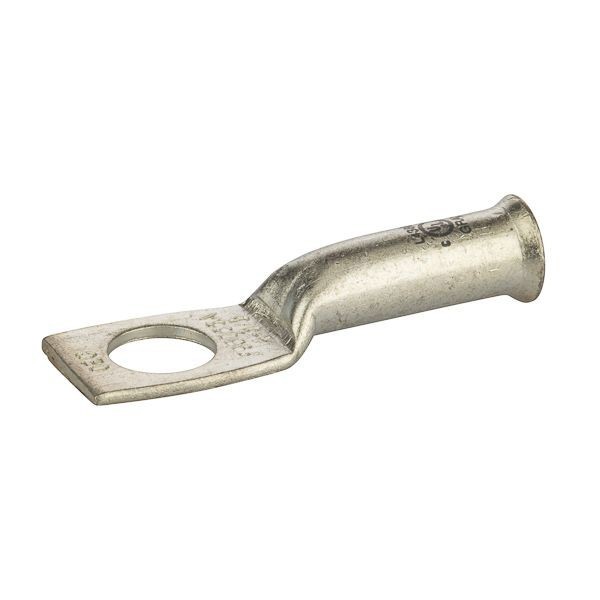

NSI L438B L-B Series 1-Hole Compression Lug, 4 AWG Stranded Conductor, 3/8 in Stud, Copper
NSI L438B L-B Series 1-Hole Compression Lug, 4 AWG Stranded Conductor, 3/8 in Stud, Copper
SKU: NSIL438B
Manufacturer Part Number: L438B
UPC: 662381336927
Documents
Features
- Connector end has a gentle, continuous flare to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more
- The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement
- Tin plated for corrosion resistance
Specification
| Material | Copper |
|---|---|
| Mounting Hole Size | 3/8 in |
| Overall Length | 1.91 in |
| Stud Size | 3/8 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.591 in W |
| Type | 1-Hole |
| Voltage Rating | 600 VAC |
| Application | Terminate, Splice and Tap Power Connector Applications |
| Standard & Approvals | UL 486, cULus 155027, KM Approved |
| Conductor Size | 4 AWG |
| Barrel Size | 0.25 in ID x 0.34 in OD |
| Color | Gray |
| Conductor Type | Stranded |
| Series | L-B Series |
| Barrel Type | Belled End/Long |
