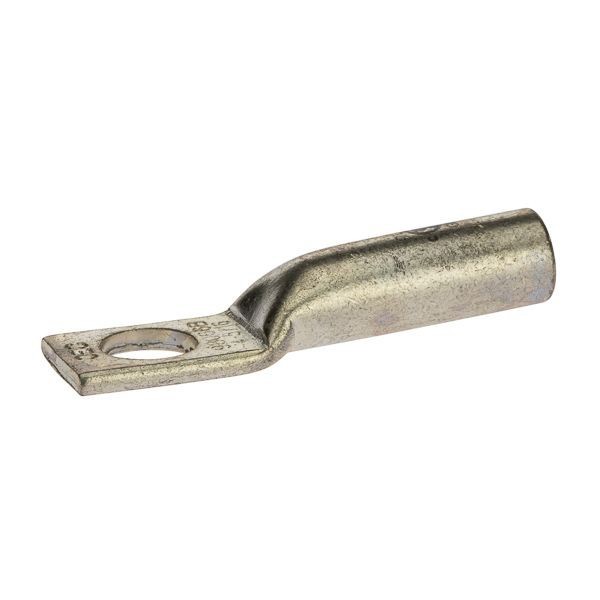

NSI L456 L Series 1-Hole Compression Lug, 4 AWG Stranded Conductor, 5/16 in Stud, Copper
NSI L456 L Series 1-Hole Compression Lug, 4 AWG Stranded Conductor, 5/16 in Stud, Copper
SKU: NSIL456
Manufacturer Part Number: L456
UPC: 662381034014
Documents
Features
- Produced from high conductivity copper tubing
- Tin plated to provide corrosion and low contact resistance
- Marked with die index and color coded
- For applications greater than 2000 V, consult the cable manufacturer for voltage stress relief instructions
Specification
| Material | Copper |
|---|---|
| Mounting Hole Size | 5/16 in |
| Overall Length | 1.77 in |
| Series | L Series |
| Stud Size | 5/16 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.669 in L x 0.49 in W x 0.087 in THK |
| Type | 1-Hole |
| Voltage Rating | 600 VAC |
| Application | Terminate, Splice and Tap Power Connector Applications |
| Standard & Approvals | UL 486, KM Approved, cULus Listed |
| Conductor Size | 4 AWG |
| Barrel Size | 0.25 in ID x 0.34 in OD x 0.984 in L |
| Barrel Type | Long |
| Color | Gray |
| Conductor Type | Stranded |
