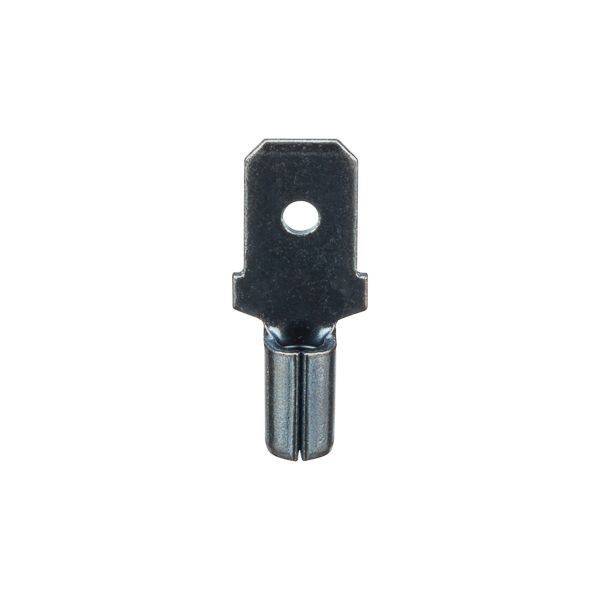

NSI Miniterms M16-250-3V-S M Series Male Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Brass, Blue
NSI Miniterms M16-250-3V-S M Series Male Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Brass, Blue
SKU: NSIM16-250-3V-S
Manufacturer Part Number: M16-250-3V-S
UPC: 662381070135
Specification
| Material | Brass |
|---|---|
| Minimum Order Qty | 25 |
| Order Interval | 25 |
| Color | Blue |
| Conductor Size | 16 to 14 AWG |
| Finish | Electro-Plated Tin |
| Series | M Series |
| Specifications | 1-Terminal, Vinyl Insulated, 1/4 in Stud Size |
| Tab Size | 0.25 in W x 0.032 in THK |
| Temperature Rating | 75 deg C |
| Voltage Rating | 300 VAC |
| Application | Wire Termination Applications |
| Standard & Approvals | cULus Listed, KM Approved |
| Dimensions | 0.834 in L x 0.249 in W |
| Catalog ID | NSIM16-250-3V-S |
| Barrel Type | Butted Seam |
