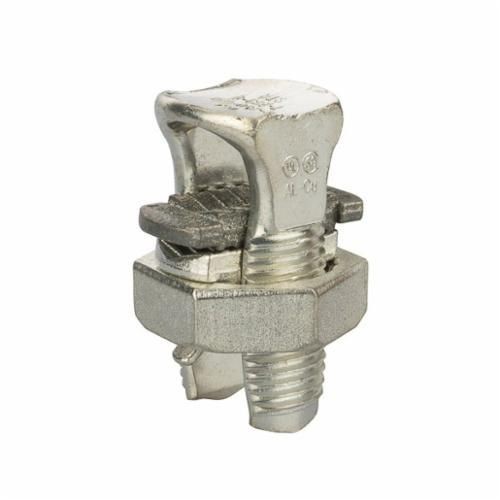

NSI N-250SP All-Purpose Split Bolt Connector, 1/0 AWG to 250 kcmil ACSR/Aluminum/Copper/Solid/Stranded Conductor, 1.12 x 2.106 in, Copper
NSI N-250SP All-Purpose Split Bolt Connector, 1/0 AWG to 250 kcmil ACSR/Aluminum/Copper/Solid/Stranded Conductor, 1.12 x 2.106 in, Copper
SKU: NSIN-250SP
Manufacturer Part Number: N-250SP
UPC: 662381020390
Documents
Features
- Class A and B wire type
- 4 - 4/0 AWG for ACSR conductor range of main and tap
- 4 stranded AWG conductor range min tap with one maxmain
- 0.232 - 0.575 in wire dia
- 1/0 AWG stranded - 250 MCM conductor range for equal run and tap
- 6 Pieces/Pack
Specification
| Material | Copper |
|---|---|
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Dimensions | 2.106 in L x 1.102 in W |
| Conductor Type | Solid/Stranded/ACSR Copper/Aluminum |
| Bolt Size | 2.106 in x 1.12 in |
| Conductor Size | 1/0 AWG - 250 MCM |
| Standard & Approvals | UL486B Listed |
| Application | For Combinations of Aluminum to Copper, Aluminum to Aluminum, Steel to Aluminum, Copper to Copper and Steel to Copper Applications and Wire Termination |
| Type | All-Purpose |
| Specifications | 1 Pole, 2 Conductors, 0.6 in Split, 1.38 in Hex Nut, 650 in lb Torque |
| Series | N-SP |
| Includes | Nut, Spacer and Pressure Pad |
| Finish | Tin-Plated |
